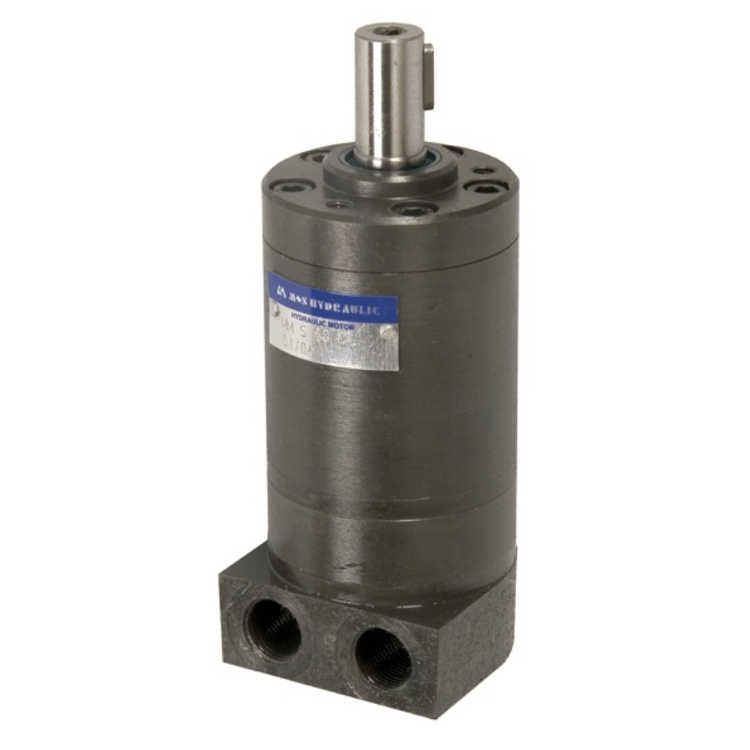

MM8 8cc Hydraulic Motor 16mm Shaft, Side Connection

MM8 8cc Hydraulic Motor 16mm Shaft, Side Connection

Technical specifications:

• Model: MOMM8 S
• Dimension R1: 3/8" BSP
• max. liters per minute: 16 l/min
• Nominal pressure: 100 bar
• max pressure: 200 bar
• Stroke volume: 8 cc
• max speed constant: 1950 RPM
• max speed peak: 2450RPM
• Rated torque: 11 Nm
• max torque: 21 Nm
• max. power constant: 1.8 kW
• Dimension L1: 3.5mm
• Dimension L: 105mm
• Other specifications: see attachment
