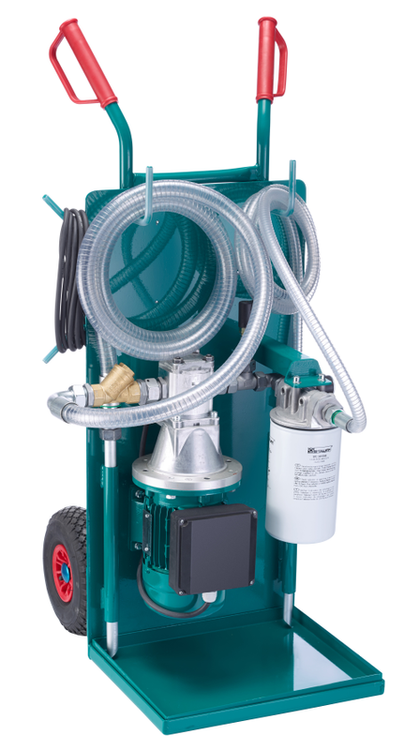

Mobile filter system 30 l/min - 10 µm - 230V

Portable filter system 30 l/min - 10 µm - 230V

• Movable external filter unit
• Unit: per piece
• Pump: gear pump
• Engine: CE-certified electric motor with earthed plug

Technical specifications:

• Flow: 30 l/min
• Voltage nominal: 230V
• Power: 0.75 kW
• Filter fineness: 10 µm
• Lance length: 450mm
• Dimensions: 570 x 650 x 1230 mm
• Indication of dirt accumulation: dynamic pressure manometer SIM 04
• Protection class: IP 55: protected against dust and water jets
• Total weight: 58.5kg

Hoses:

• Material: PVC, reinforced with internal wire spiral
• Length: 1.5 m on the suction side and 2 m on the pressure side
• Dimensions: DN 25 on the suction side and DN 16 on the pressure side
• Has a suction side geïintegrated coarse filter (stainless steel filter 200 µm)
