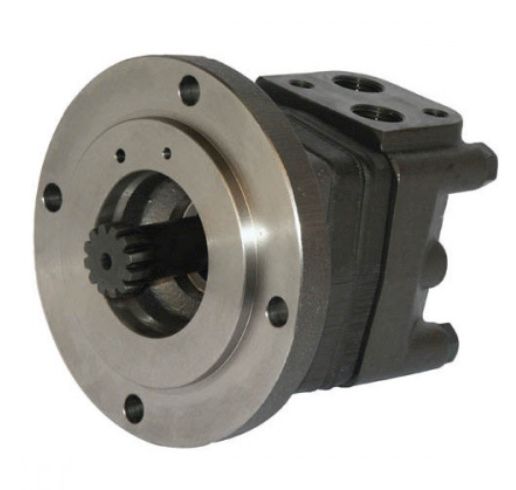

MSS200 200cc hydraulic motor spline shaft 12t Ø 32mm short with leak connection
€646.23
In stock
MSS200 200cc hydraulic motor spline shaft 12t Ø 32mm short with leakage connection
Technical specifications:
- Stroke volume: 200 cm³
- Axle: without output shaft
- Max. speed: 375 rpm
- Max. torque: 610 Nm
- Max. power: 16.5 kW
- Pressure difference: 210 bar
- Inlet pressure: 230 bar
- Max. flow: 75 l/min
- Connection: 1/2"
- Leak connection: 1/4"
- Dimensions L: 145 mm
- Dimension L1: 34.8 mm
- Danfoss reference number: 151B30039
