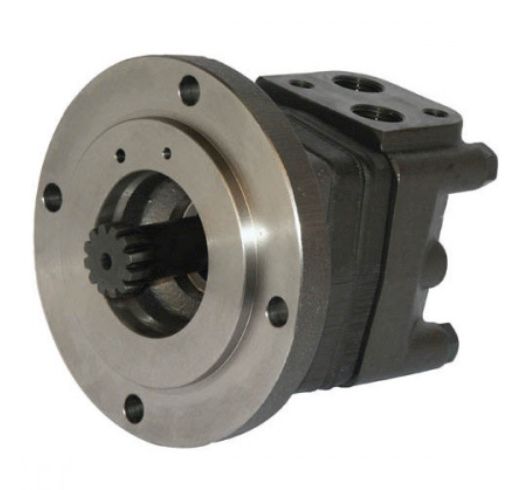

MSS315 315cc hydraulic motor spline shaft 12t Ø 32mm short with leak connection
€677.32
In stock
MSS315 315cc hydraulic motor spline shaft 12t Ø 32mm short with leakage connection
Technical specifications:
- Displacement: 314.9 cm³
- Axle: without output shaft
- Max. speed: 240 rpm
- Max. torque: 825 Nm
- Max. power: 15 kW
- Pressure difference: 200 bar
- Inlet pressure: 230 bar
- Max. flow: 75 l/min
- Connection: 1/2"
- Leak connection: 1/4"
- Dimension L: 165 mm
- Dimension L1: 54.8 mm
- Danfoss reference number: 151B30041
