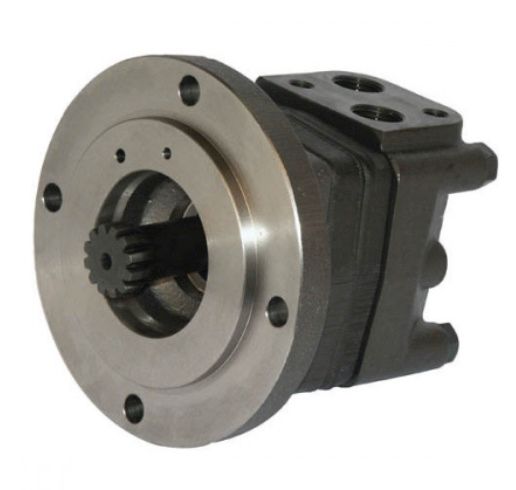

MSS80 80cc hydraulic motor spline shaft 12t Ø 32mm short with leak connection

MSS80 80cc hydraulic motor spline shaft 12t Ø 32mm short with leakage connection

Technical specifications:

• Stroke volume: 80.5 cm³
• Axle: without output shaft
• Max. speed: 810 rpm
• Max. torque: 240 Nm
• Max. power: 15.5 kW
• Pressure difference: 210 bar
• Inlet pressure: 230 bar
• Max. flow: 65 l/min
• Connection: 1/2"
• Leak connection: 1/4"
• Dimension L: 124 mm
• Dimension L1: 14 mm
• Danfoss reference number: 151B30035
