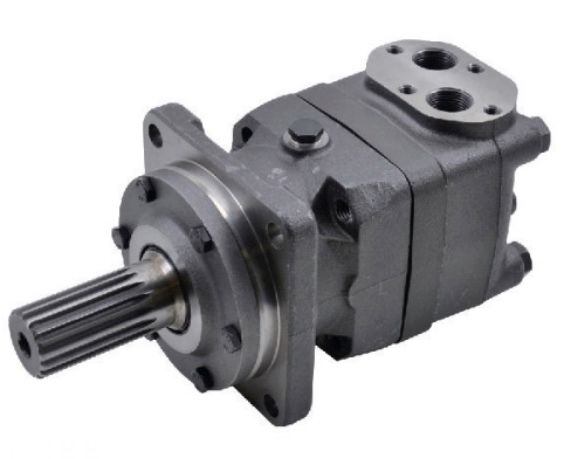

MT500 500cc hydraulic motor toothed shaft 1"1/2

€1,746.26
In stock

MT500 500cc hydraulic motor toothed shaft 1"1/2

Technical specifications:

  • Displacement: 523.6 cm³
  • Axle: toothed shaft 1" 1/2
  • Max. speed: 240 rpm
  • Max. torque: 1220 Nm
  • Max. power: 26.5 kW
  • Pressure difference: 160 bar
  • Inlet pressure: 210 bar
  • Max. flow: 125 l/min
  • Connection: 3/4"
  • Leak connection: 1/4"
  • Dimensions L: 235 mm
  • Dimension L1: 61.5 mm
  • Danfoss reference number: 151B30011
