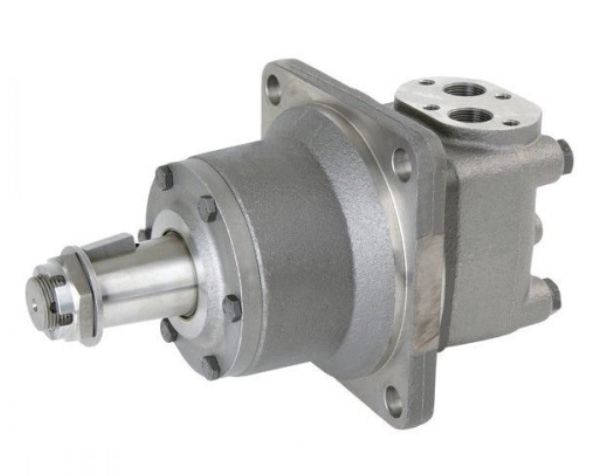

MTW200 200cc hydraulic motor 45mm 1:10 conical shaft
€1,256.69
In stock
MTW200 200cc hydraulic motor 45mm 1:10 conical shaft
Technical specifications:
- Stroke volume: 201.4 cm³
- Shaft: 45mm 1:10 conical shaft
- Max. speed: 625 rpm
- Max. torque: 590 Nm
- Max. power: 33.5 kW
- Pressure difference: 200 bar
- Inlet pressure: 210 bar
- Max. flow: 125 l/min
- Connection: 3/4"
- Leak connection: 1/4"
- Dimensions L: 128 mm
- Dimension L1: 21.5 mm
- Danfoss reference number: 151B30031
