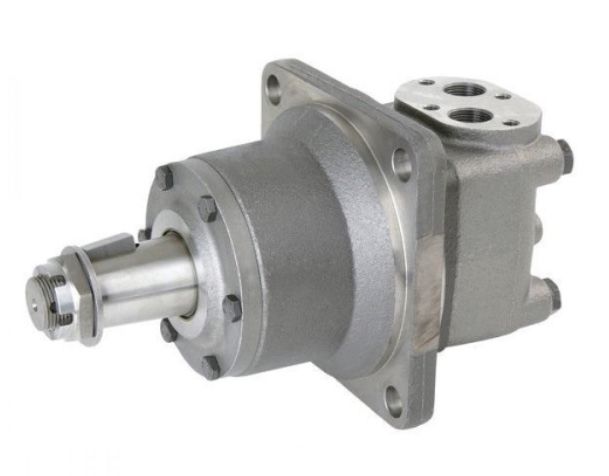

MTW315 315cc hydraulic motor 45mm 1:10 conical shaft
€1,617.95
In stock
MTW315 315cc hydraulic motor 45mm 1:10 conical shaft
Technical specifications:
- Displacement: 326.3 cm³
- Shaft: 45mm 1:10 conical shaft
- Max. speed: 380 rpm
- Max. torque: 950 Nm
- Max. power: 33.5 kW
- Pressure difference: 200 bar
- Inlet pressure: 210 bar
- Max. flow: 125 l/min
- Connection: 3/4"
- Leak connection: 1/4"
- Dimension L: 144 mm
- Dimension L1: 37 mm
- Danfoss reference number: 151B30033
