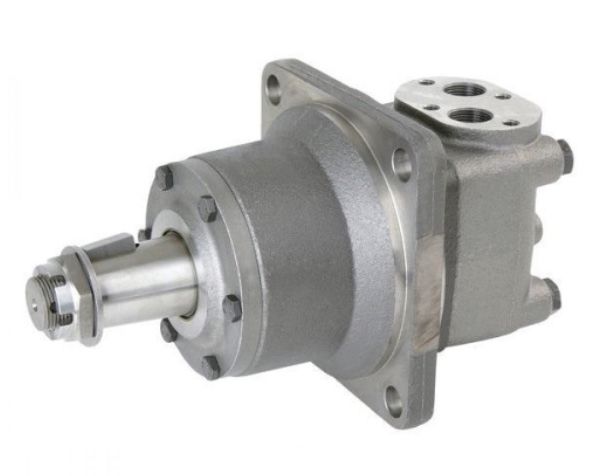

MTW400 400cc hydraulic motor 45mm 1:10 conical shaft
€1,644.45
In stock
MTW400 400cc hydraulic motor 45mm 1:10 conical shaft
Technical specifications:
- Displacement: 410.9 cm³
- Shaft: 45mm 1:10 conical shaft
- Max. speed: 305 rpm
- Max. torque: 1080 Nm
- Max. power: 30 kW
- Pressure difference: 180 bar
- Inlet pressure: 210 bar
- Max. flow: 125 l/min
- Connection: 3/4"
- Leak connection: 1/4"
- Dimension L: 154 mm
- Dimension L1: 47.5 mm
- Danfoss reference number: 151B30034
