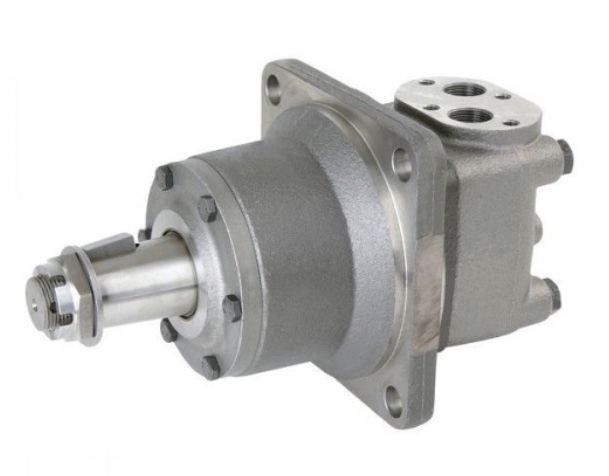

MTW500 500cc hydraulic motor 1"3/4 1:10 taper shaft
€1,757.93
In stock
MTW500 500cc hydraulic motor 1"3/4 1:10 taper shaft
Technical specifications:
- Displacement: 523.6 cm³
- Shaft: 1" 3/4 1:10 taper shaft
- Max. speed: 240 rpm
- Max. torque: 1220 Nm
- Max. power: 26.5 kW
- Pressure difference: 160 bar
- Inlet pressure: 210 bar
- Max. flow: 125 l/min
- Connection: 3/4"
- Leak connection: 1/4"
- Dimension L: 168 mm
- Dimension L1: 61.5 mm
- Danfoss reference number: 151B2085
