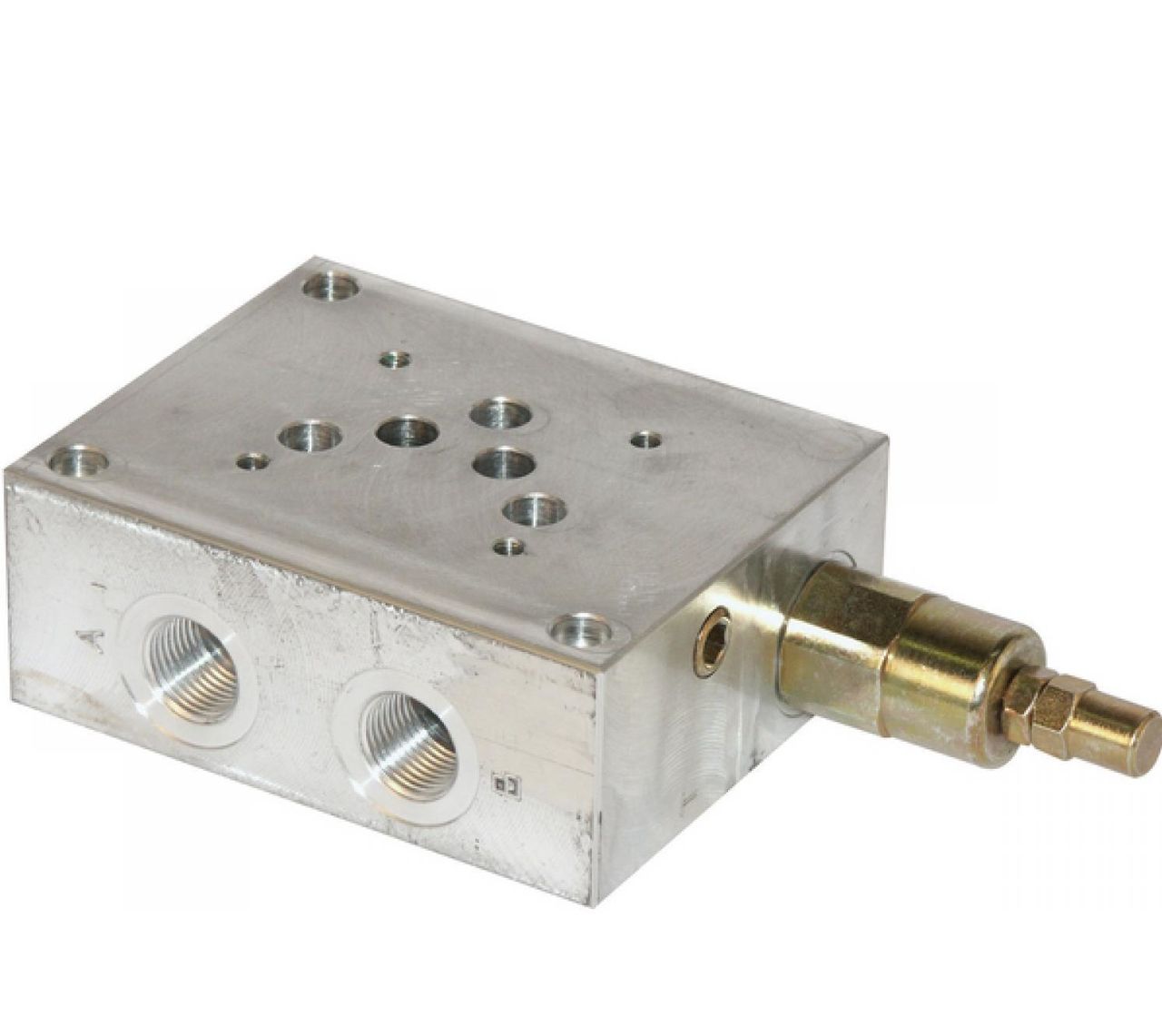

NG10 - Cetop 05 base plate only with safety
€173.59
In stock
NG10 - Cetop 05 base plate only with safety
- Material: aluminum
Technical specifications:
- Cetop model: NG10
- Compression spring: 50 - 220 bar
- Spring: 50 - 220 bar
- Connection: 1/2" BSP
- Male thread: 1/4"
- Dimension H1: 39.5mm
- Distance, mounting holes: 10mm
- Max. pressure: 210 bar
- Max. oil flow: 60 l/min
- Size C: 100mm
- Size G: 42.5mm
- Dimension H: 25mm
- Dimension I: 42mm
- Dimension J: 67mm
- Size: 125mm
