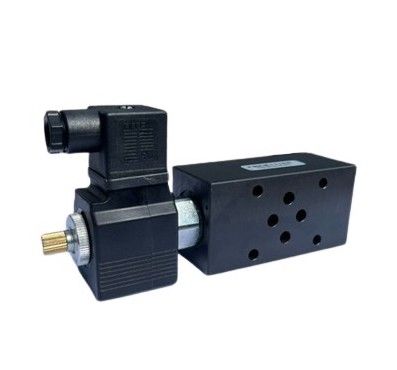

NG6 24V intermediate valve NC 2/2 valve in B

NG6 24V intermediate valve NC 2/2 valve in B

• Valve type: electric intermediate ventricle
• Material: aluminum

This product consists of the following parts that are supplied separately:

• 1x NG6 intermediate valve A and B for electric check valve
• 1x Cartridge NC for 2/2 valve 40 L/min with emergency operation
• 1x 24V magnetic coil 13.3 mm center
• 2x Plug AC/DC 12/24/230V for Cetop
• 1x Closing cap JIC 3/4" 16h UNF male

Technical specifications of intermediate valve:

• Cetop model: NG6
• Wire connection: 3/4 UNF
• Max. volume flow: 45 l/min
• Maximum working pressure: 210 bar
• Type: vei/ab
• Suitable for: A and B gate
• Height: 46mm
• Length: 77mm
