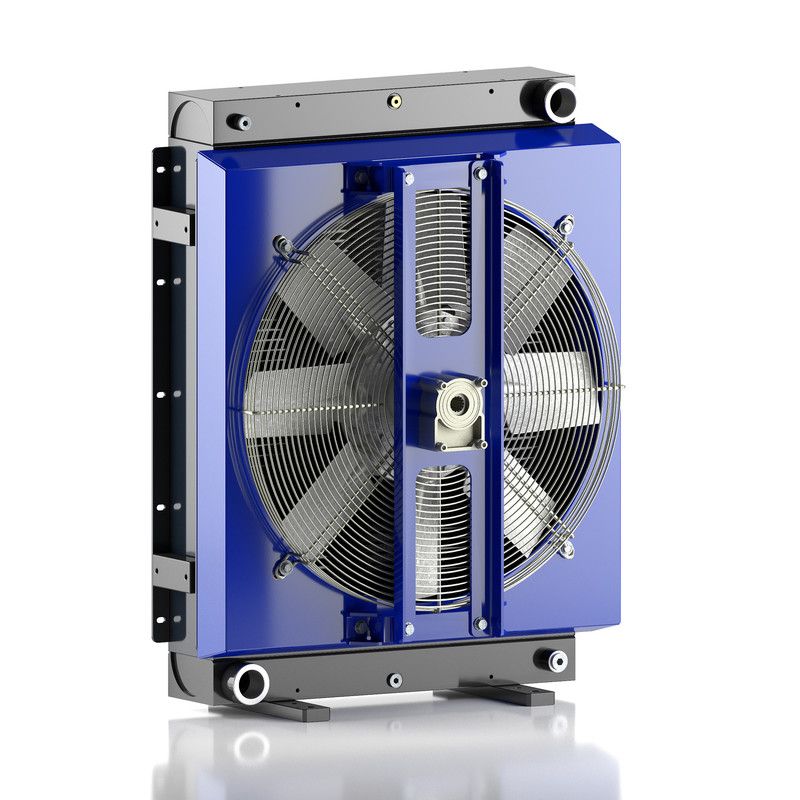

Oesse hydraulic oil cooler 120 kW group 2, 1"1/2 BSP

Oesse hydraulic oil cooler 120 kW group 2, 1"1/2 BSP

Oil-air heat exchanger, for cooling hydraulic industrial systems and mobile machines.

• Radiator is made of an aluminum alloy
• Including thermostat, mounting brackets, vibration dampers

Technical specifications:

• Brand: Oesse
• Oil flow capacity: 70 - 280 liters
• Flow rate: 280 l/min
• Contents: 20,2 litres
• Maximum working pressure: 24 bar
• Weight: 89 kg
• Power: 1000-3000 RPM
• Fan Ø: 630 mm
• Supply connections: 1"1/2 BSP
• Drain connections: 1"1/2 BSP
• Air passage: 5232-17500 m3/h
• Noise level: 81 dB (A)
• Cooling capacity 70 liters: 44 kW (dT=40°C) (1000 RPM)
• Cooling capacity 280 liters: 120 kW (dT=40°C) (3000 RPM)
