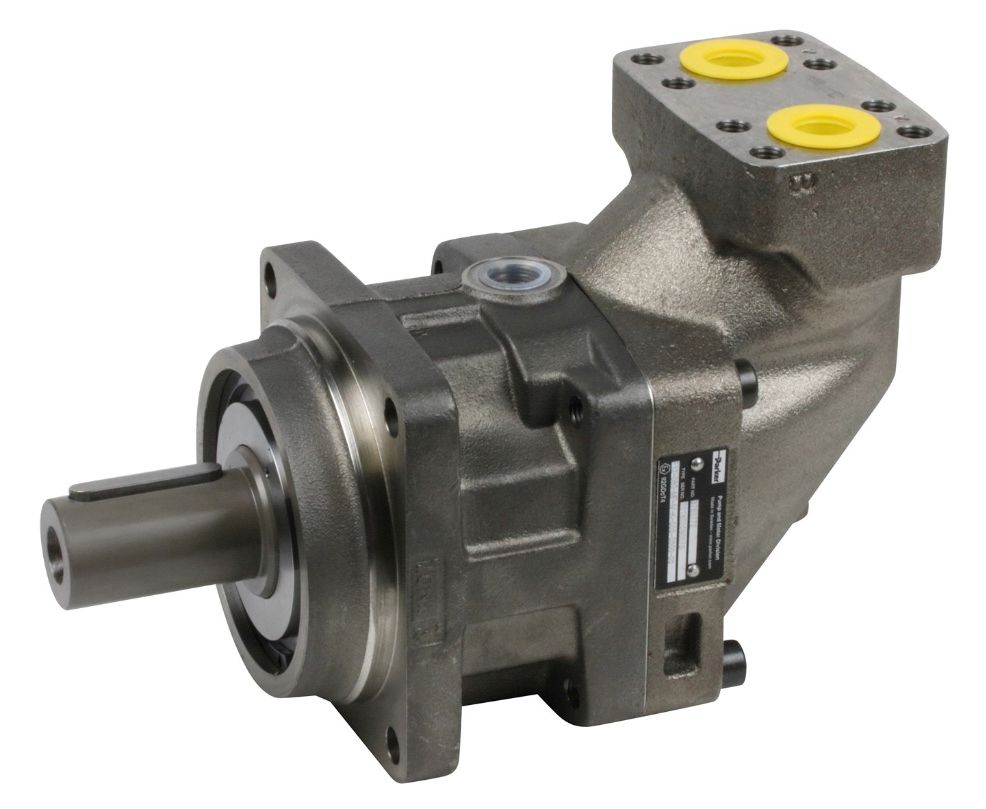

Parker plunger engine F12 125cc with 525 l/min spline shaft
€5,377.23
In stock
Parker plunger engine F12 125cc with 525 l/min spline shaft
Technical specifications:
- The 7 or 9 piston construction provides high starting heads and smooth actuation
- Design according to CETOP, ISO and SAE and slide-in version
- The F12 engines have a very high torque when starting and at low speeds
- Robust roller bearings enable large radial and axial shaft loads
Technical specifications:
- Item number: F12-125-MF-IV-D-000-0000-P0
- Stroke volume: 125 cc
- Max. operating pressure: 420 bar
- Max. speed: 4200 rpm
- Max. flow: 525 l/min
- shaft: spline shaft
- Dimension A1: 141.4 mm
- Dimension A2: 145 mm
- Dimension A3: 170 mm
- Dimension B1: 180 mm
- Dimension C1: 180 mm
- Dimension D2: 14 mm
- Dimension G2: 231 mm
- Dimension G3: 179 mm
- Dimension D1: 18 mm
- Connection A-B: SAE 6000-1" BSP
