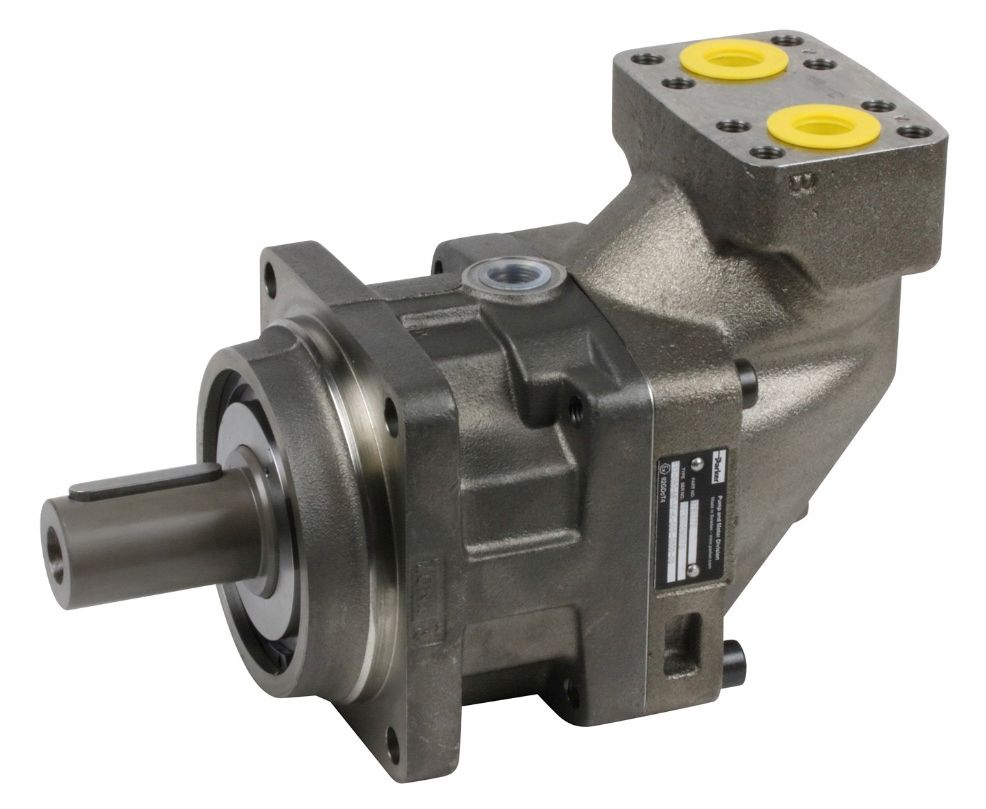

Parker plunger motor F12 110cc with 484 l/min spline shaft

Parker plunger motor F12 110cc with 484 l/min spline shaft

Technical specifications:

• The 7 or 9 piston construction provides high starting heads and smooth actuation
• Design according to CETOP, ISO and SAE and slide-in version
• The F12 engines have a very high torque when starting and at low speeds
• Robust roller bearings enable large radial and axial shaft loads

Technical specifications:

• Item number: F12-110-MF-IV-D-000-0000-P0
• Stroke volume: 110cc
• Max. operating pressure: 420 bar
• Max. speed: 4400 rpm
• Max. flow: 484 l/min
• shaft: spline shaft
• Dimension A1: 141.4 mm
• Dimension A2: 145 mm
• Dimension A3: 170 mm
• Dimension B1: 180 mm
• Dimension C1: 180 mm
• Dimension D2: 14 mm
• Dimension G2: 231 mm
• Dimension G3: 179 mm
• Dimension D1: 18 mm
• Connection A-B: SAE 6000-1" BSP
