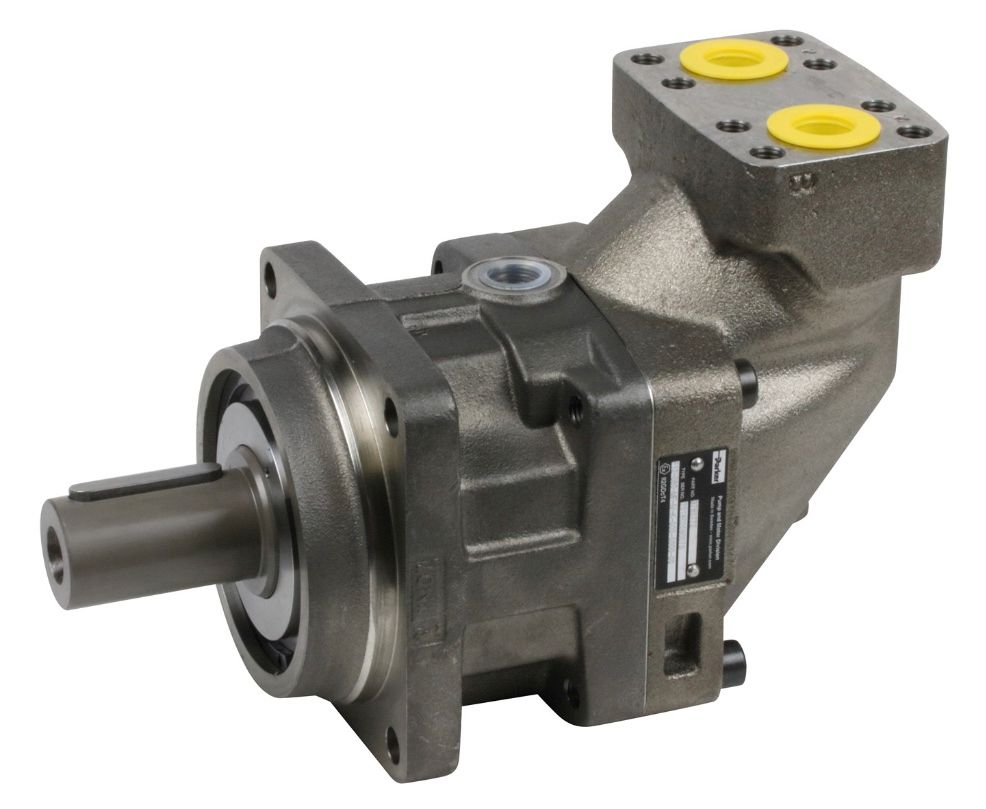

Parker plunger motor F12 30cc with 201 l/min 30mm shaft
€2,553.40
In stock
Parker plunger motor F12 30cc with 201 l/min 30mm shaft
Technical specifications:
- The 7 or 9 piston construction provides high starting heads and smooth actuation
- Design according to CETOP, ISO and SAE and slide-in version
- The F12 engines have a very high torque when starting and at low speeds
- Robust roller bearings enable large radial and axial shaft loads
Technical specifications:
- Item number: F12-030-MF-IV-K-000-0000-P0
- Stroke volume: 30cc
- Max. operating pressure: 420 bar
- Max. speed: 6700 rpm
- Max. flow: 201 l/min
- shaft: 30mm shaft
- Dimension A1: 88.4mm
- Dimension A2: 100mm
- Dimension A3: 122mm
- Dimension B1: 118mm
- Dimension C1: 118mm
- Dimension D2: 8mm
- Dimension G2: 172mm
- Dimension G3: 136.5mm
- Dimension D1: 11mm
- Connection A-B: SAE 6000-3/4" BSP
