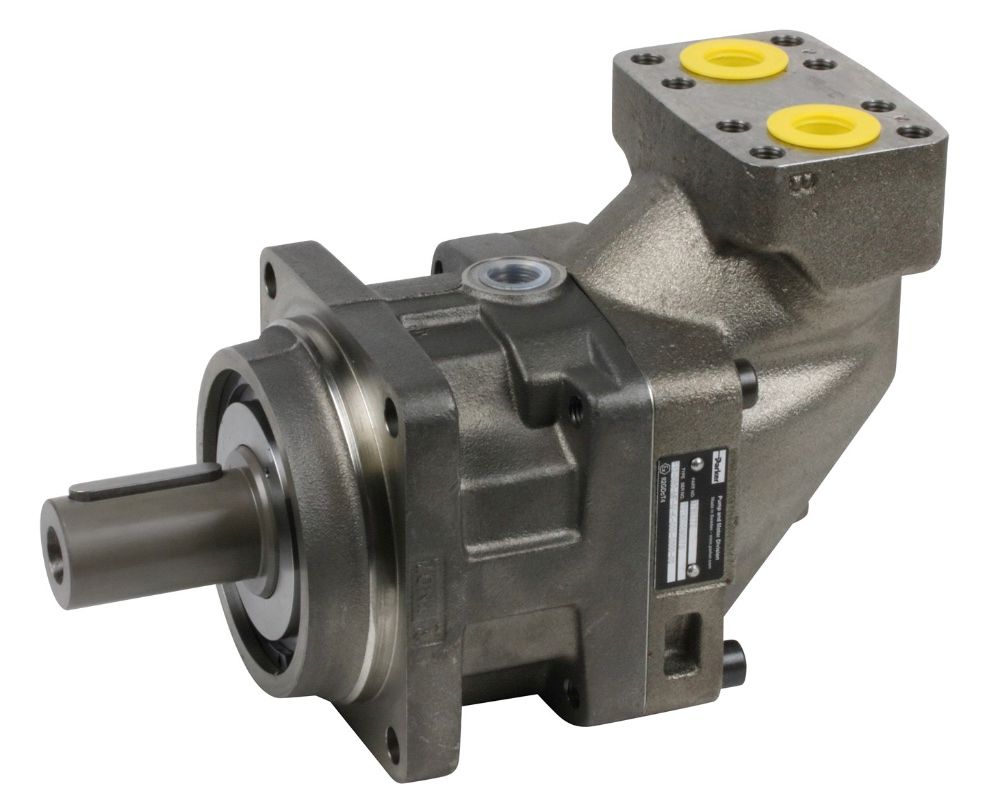

Parker plunger motor F12 80cc with 386 l/min spline shaft

Parker plunger motor F12 80cc with 386 l/min spline shaft

Technical specifications:

• The 7 or 9 piston construction provides high starting heads and smooth actuation
• Design according to CETOP, ISO and SAE and slide-in version
• The F12 engines have a very high torque when starting and at low speeds
• Robust roller bearings enable large radial and axial shaft loads

Technical specifications:

• Item number: F12-080-MF-IV-D-000-0000-P0
• Stroke volume: 80cc
• Max. operating pressure: 420 bar
• Max. speed: 4800 rpm
• Max. flow: 386 l/min
• shaft: spline shaft
• Dimension A1: 127.2 mm
• Dimension A2: 135 mm
• Dimension A3: 155 mm
• Dimension B1: 158 mm
• Dimension C1: 155 mm
• Dimension D2: 12 mm
• Dimension G2: 216 mm
• Dimension G3: 172.5 mm
• Dimension D1: 13.5 mm
• Connection A-B: SAE 6000-3/4" BSP
