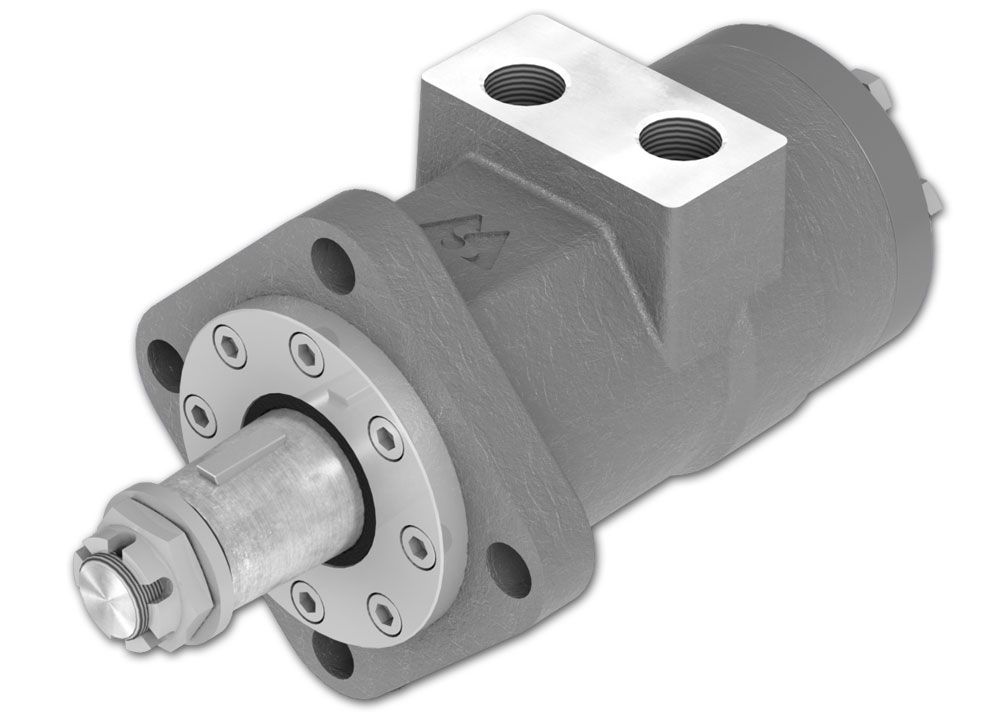

PL100C 100cc hydraulic motor 25mm axle

• Type: orbital engine
• Advantages: high torque, smooth operation, long life, high power density

Technical specifications:

• Art. number: PL100
• Axle diameter: 25 mm
• Stroke volume: 99.0 cc
• Revolutions: 605 rpm
• Max. revolutions: 755 rpm
• Nominal pressure: 140 bar
• Max. pressure: 175 bar
• Torque: 19.3 daNm
• Max. torque: 23.7 daNm
• Outgoing: 9.9 kW
• Max. output: 12.5 kW
• Weight: 7.1 kg
• Liquid temperature: -40 to +140 °C
