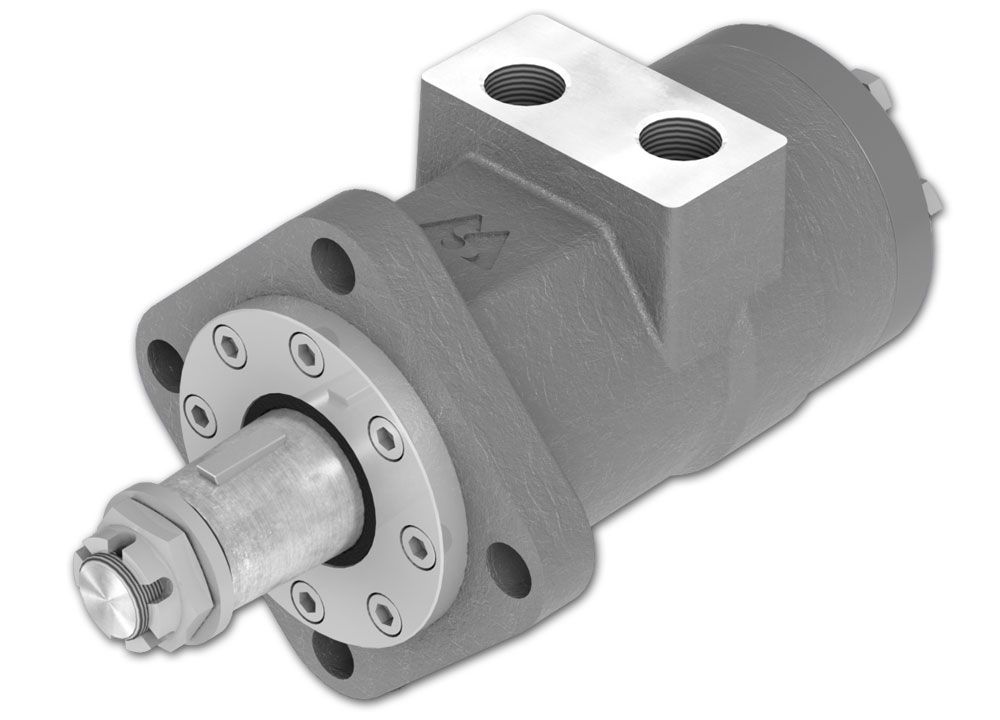

PL125C 125cc hydraulische motor 25mm as

PL125C 125cc hydraulic motor 25mm axle

• Type: orbital engine
• Advantages: high torque, smooth operation, long life, high power density

Technical specifications:

• Art. number: PL125
• Axle diameter: 25 mm
• Displacement: 123.8 cc
• Revolutions: 485 rpm
• Max. revolutions: 605 rpm
• Nominal pressure: 140 bar
• Max. pressure: 175 bar
• Torque: 23.7 daNm
• Max. torque: 29.8 daNm
• Outgoing: 9.9 kW
• Max. output: 12.5 kW
• Weight: 7.2 kg
• Liquid temperature: -40 to +140 °C
