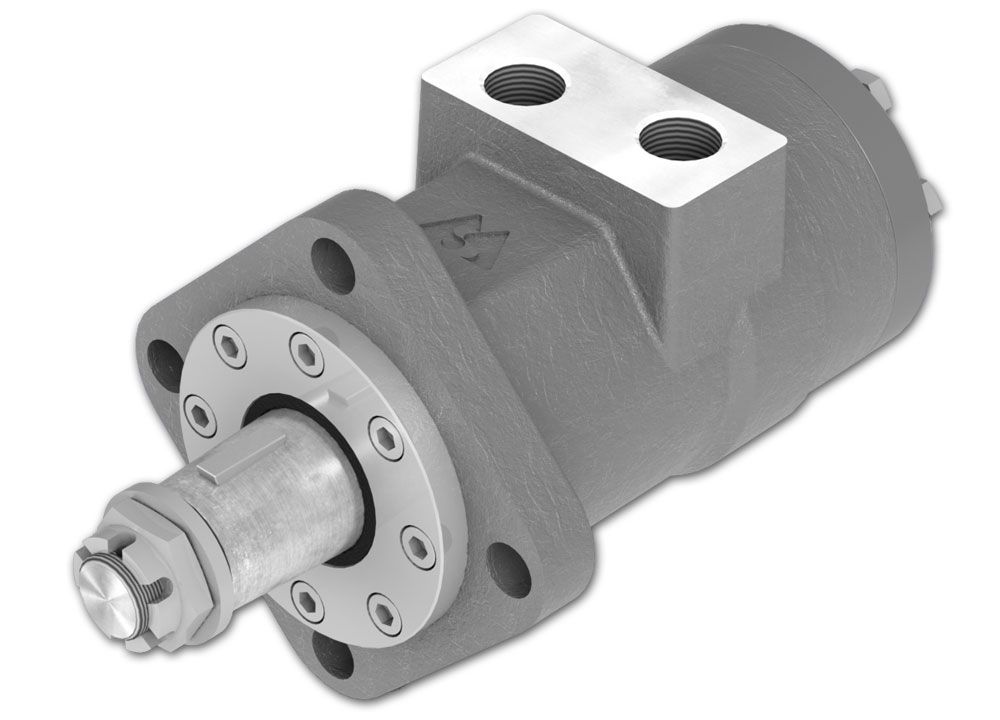

PL160C 160cc hydraulische motor 25mm as

PL160C 160cc hydraulic motor 25mm axle

• Type: orbital engine
• Advantages: high torque, smooth operation, long life, high power density

Technical specifications:

• Art. number: PL160
• Axle diameter: 25 mm
• Displacement: 158.4cc
• Revolutions: 378 rpm
• Max. revolutions: 472 rpm
• Nominal pressure: 140 bar
• Max. pressure: 175 bar
• Torque: 31.3 daNm
• Max. torque: 37.8 daNm
• Outgoing: 11.7 kW
• Max. output: 12.5 kW
• Weight: 7.4 kg
• Liquid temperature: -40 to +140 °C
