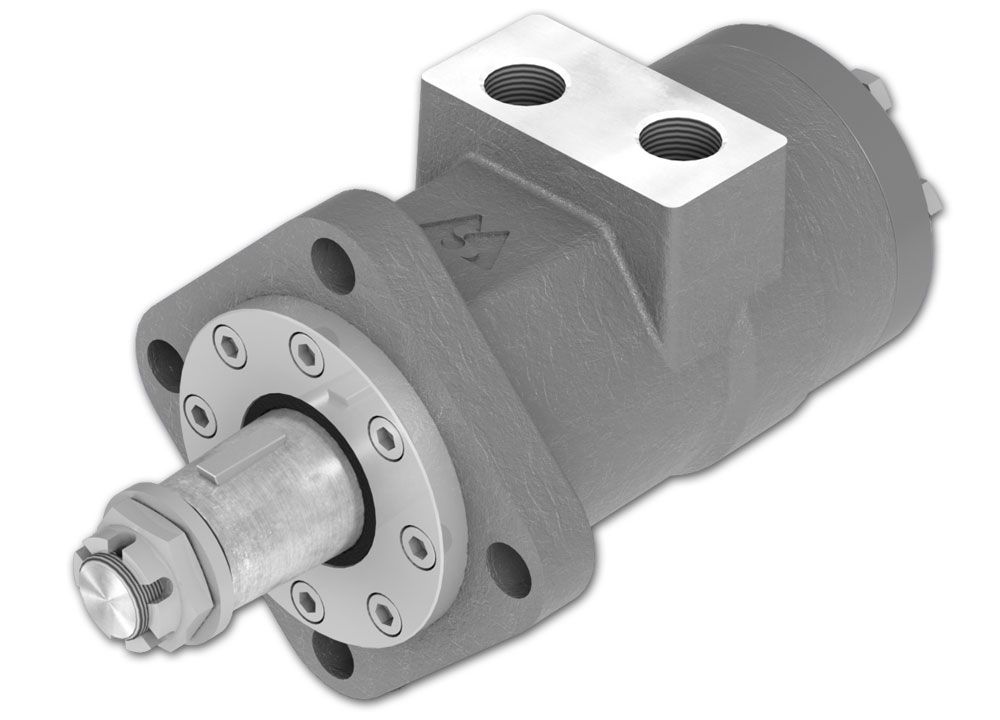

PL200C 200cc hydraulic motor 25mm axle

• Type: orbital engine
• Advantages: high torque, smooth operation, long life, high power density

Technical specifications:

• Art. number: PL200
• Axle diameter: 25 mm
• Displacement: 198 cc
• Revolutions: 303 rpm
• Max. revolutions: 378 rpm
• Nominal pressure: 140 bar
• Max. pressure: 175 bar
• Torque: 33.6 daNm
• Max. torque: 45.6 daNm
• Outgoing: 10.3 kW
• Max. output: 12.5 kW
• Weight: 7.6 kg
• Liquid temperature: -40 to +140 °C
