PL315C 315cc hydraulic motor 25mm as
€345.16
In stock

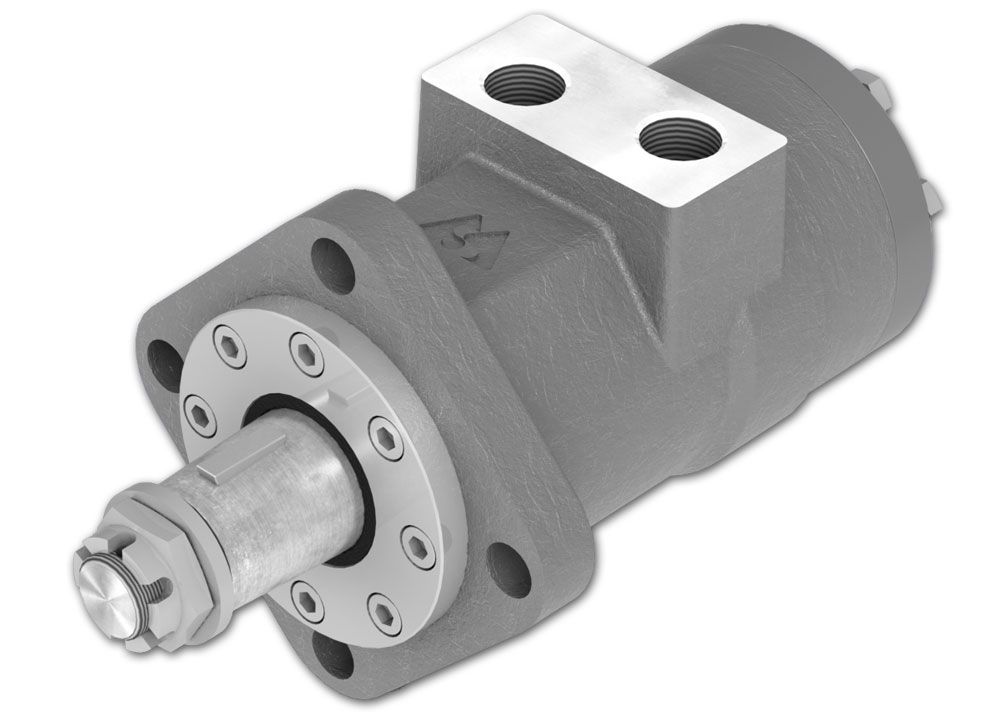

PL315C 315cc hydraulic motor 25mm axle
- Type: orbital engine
- Advantages: high torque, smooth operation, long life, high power density
Technical specifications:
- Art. number: PL315C
- Axle diameter: 25 mm
- Displacement: 247.5cc
- Revolutions: 190 rpm
- Max. revolutions: 236 rpm
- Nominal pressure: 140 bar
- Max. pressure: 175 bar
- Torque: 48.6 daNm
- Max. torque: 56 daNm
- Outgoing: 7.6 kW
- Max. output: 10.5 kW
- Weight: 8.2 kg
- Liquid temperature: -40 to +140 °C
