PL50C 50cc hydraulic motor 25mm shaft
€294.86
In stock

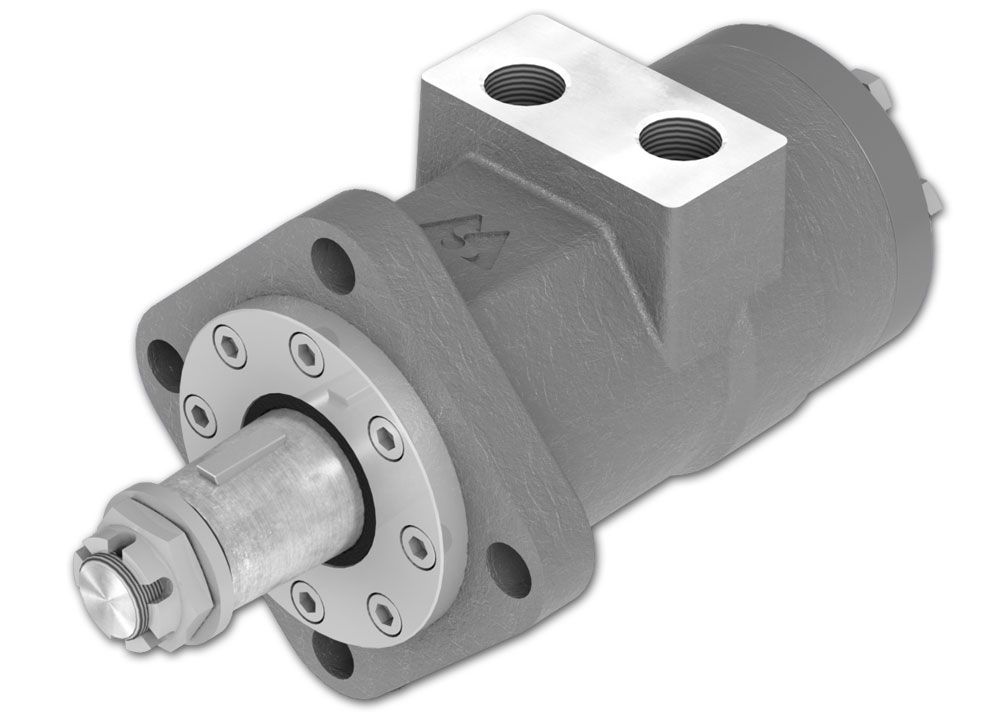

PL50C 50cc hydraulic motor 25mm shaft
- Type: orbital engine
- Advantages: high torque, smooth operation, long life, high power density
Technical specifications:
- Art. number: PL50
- Axle diameter: 25 mm
- Stroke volume: 49.5 cc
- Revolutions: 1210 rpm
- Max. revolutions: 1515 rpm
- Nominal pressure: 140 bar
- Max. pressure: 175 bar
- Torque: 9.4 daNm
- Max. torque: 11.9 daNm
- Outgoing: 9.9 kW
- Max. output: 12.5 kW
- Weight: 6.8 kg
- Temperature: -40 to +140 °C
