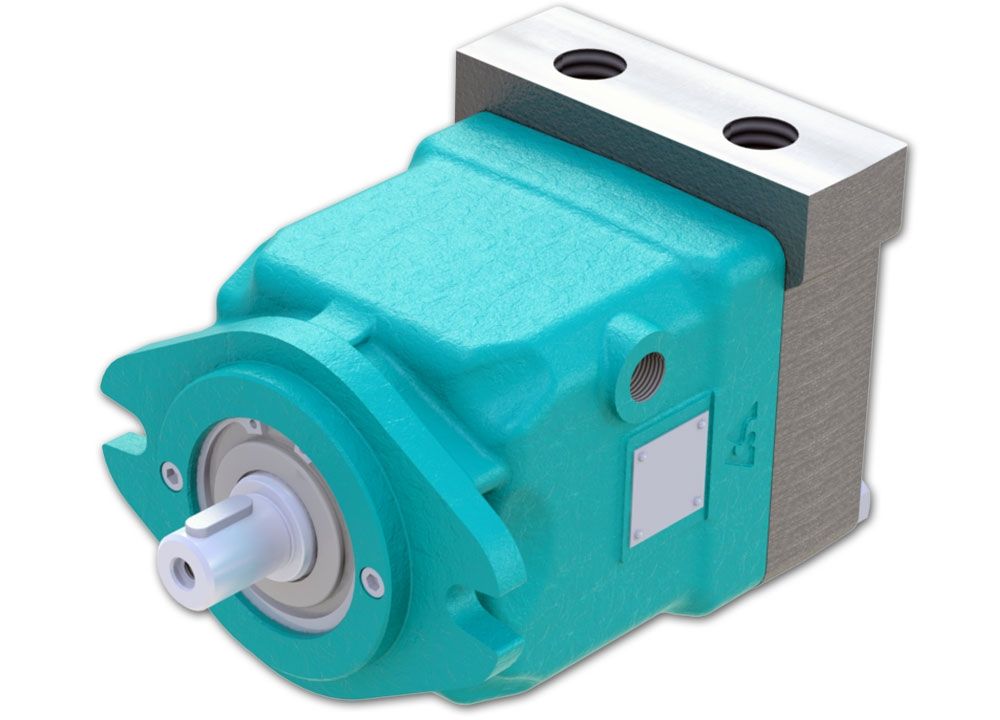

Plunger motor 40cc - 67 kW - 25mm shaft
€1,044.59
In stock
Plunger motor 40cc - 67 kW - 25mm shaft
Technical specifications:
- Advantages: high torque, smooth actuation, long service life, high power density
- Options: also possible with other specifications, please contact us
Technical specifications:
- Art. number: FOLDER 40
- Stroke volume: 41.59cc
- Flange Type: SAE-B
- shaft diameter: 25mm
- Revolutions: 4000 rpm
- Max. revolutions: 4500 rpm
- Max. pressure: 420 bar
- Nominal pressure: 350 bar
- Couple: 232 Nm
- Max. couple: 232 Nm
- Outgoing: 67 kW
- Max. outgoing: 97 kW
- Temperature: -40 to +82 °c
