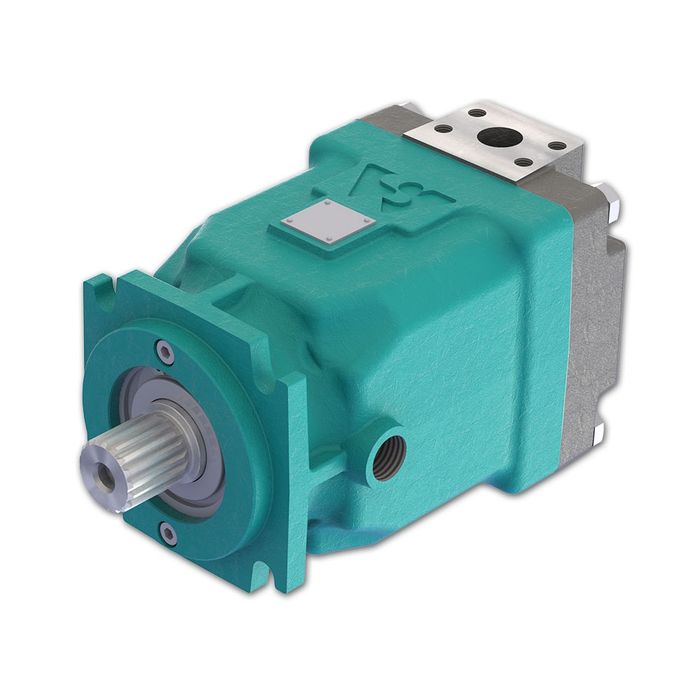

Plunger motor 63cc - 89 kW - 25mm shaft
€1,042.81
In stock
Plunger motor 63cc - 89 kW - 25mm shaft
Technical specifications:
- Advantages: high torque, smooth actuation, long service life, high power density
- Options: also possible with other specifications, please contact us
Technical specifications:
- Art. number: FOLDER 63
- Stroke volume: 63.58cc
- Flange Type: SAE-C
- shaft diameter: 25mm
- Revolutions: 3500 rpm
- Max. revolutions: 4000 rpm
- Nominal pressure: 350 bar
- Max. pressure: 420 bar
- Couple: 354 Nm
- Max. couple: 425 Nm
- Outgoing: 89 kW
- Max. outgoing: 129 kW
- Temperature: -40 to +82 °c
