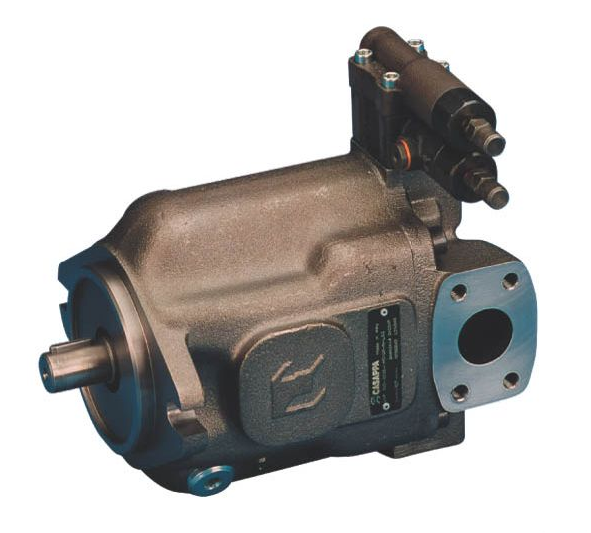

Plunger pump open circuit type LVP-48 LS-2 shaft ø 25.4mm
€1,976.80
In stock
Plunger pump open circuit type LVP-48 LS-2 shaft &oslshaft; 25.4mm
| Product number | LVP48D002 |
| Details | - Special bearing of output shaft - Modular - Variable yield |
| Advantages | - Suitable for radial and axial loads - Available with various pump controls - Energy saving |
| Scope of application | - Stationary applications - Mobile applications |
| Properties | - Low noise emission - Fast response time |
| Technical information | - When using a V-belt drive, always use a front bearing |
| Unit | per piece |
| Flange type | S5= SAE-B 2-hole flange, spigot end 101.6 mm |
| Connection position and connection | "L= side connection P= rear connection ME= 3000PSI 1 1/2" QC=6000PSI 1" |
| Regulation | RP-0 = pressure compensated (25-315 bar) LS-2 = flow compensated (25-315 bar) |
| Speed (rev/min) (Rpm) | 2600 |
| Pressure intermittent (bar) | 315 |
| Maximum peak pressure (bar) (bar) | 350 |
| Q (cc/rev) | 46 |
| Direction of rotation | D = Clockwise rotation |
| Axis type | 33 = Cylindrical shaft &oslshaft; 25.4mm |
| Connection position and connection | L = Side connection |
| Connection | ME/QC ME = 3000 Psi 1"1/2 QC = 6000 Psi 1" |
| Regulation | LS-2 |
| A (mm) | 242 |
| W (mm) | 160 |
| C (mm) | 206 |
| D (mm) | 194 |
| E (mm) | 39.5 |
| F (mm) | 149 |
