Pump flange straight 4 holes 3/8'' BSP (30mm)
€13.62
In stock

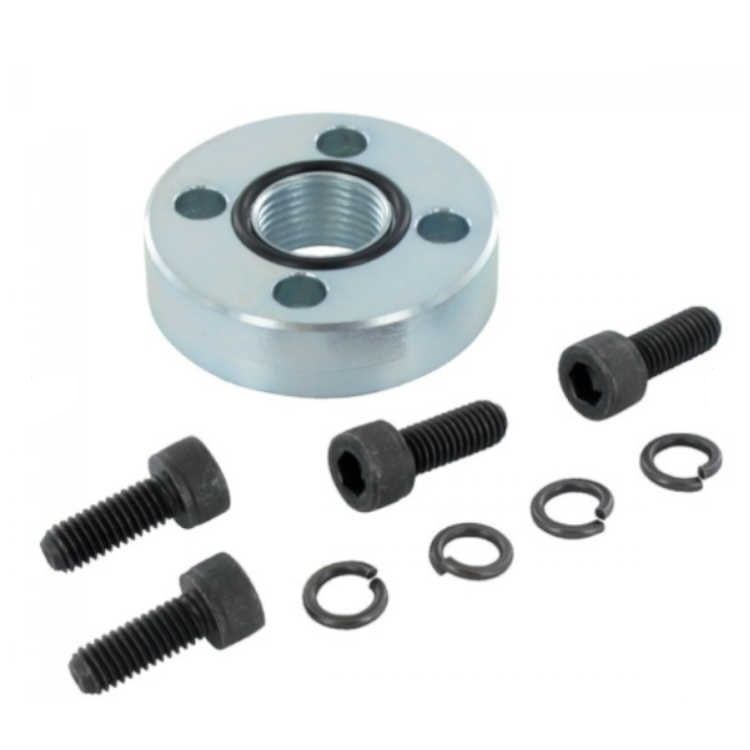

Pump flange straight 4 holes 3/8'' BSP (30mm)
- Application: connecting hydraulic pumps and motors
- Version: straight, 4 holes
- Package contents: pump flange, seal, washers and bolts
Technical specifications:
- Max. working pressure: 300 bar
- Bolt hole diameter (A): 30 mm
- Outer diameter (W): 45 mm
- Hollow bolt (C) : 6.5mm
- Thread (D): 3/8" BSP
- Thickness (F): 11.5 mm
- Bolt size: M6x16
- O-ring: 18.77 x 1.78
- Material: steel
