Professional hose crimping machine electrically operated 1/4" - 2"

Professional hose crimping machine electrically operated 1/4" - 2"

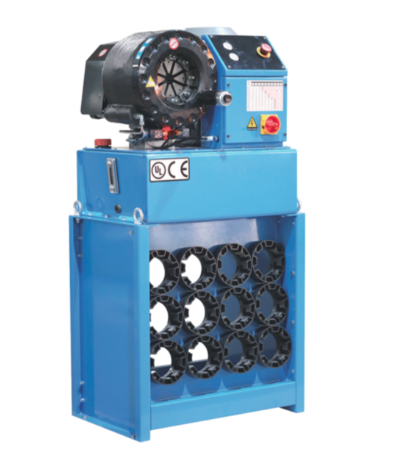

Professional hose pressing machine with electric foot control that is ideally suited for use in workshops. The hose press contains a practical storage rack where the pressing jaws can be neatly stored. The hose press is supplied with the following pressing jaws: 14-16-19-22-26-30-34-39-45-51-57-63-69 mm.

Technical specifications:

Type: P32Q
Max. hydraulic hose size: 2" - 4SP
Press range: 4-87 mm
Press jaw type: P32
Max. press jaw opening: +32 mm
Motor power: 4 kW
Motor brand: Siemens
Press force: 2200 KN
Max. Presses per hour: 1200
Operation: Operation with advanced adjustable chip
Foot control (pedal): Included
Press jaw rack: Included
Includes tools for quickly changing press jaws
Including quick-change system
Protective cover: Optional
Pressure controlled control: Optional
Oil tank capacity: 32 liters
Oil type: H46 hydraulic oil (not included as standard!)
Noise level: 65 dBA
Protection class: IP56
Dimensions (lxwxh): 680x600x1400 mm
Weight: 300 kg
