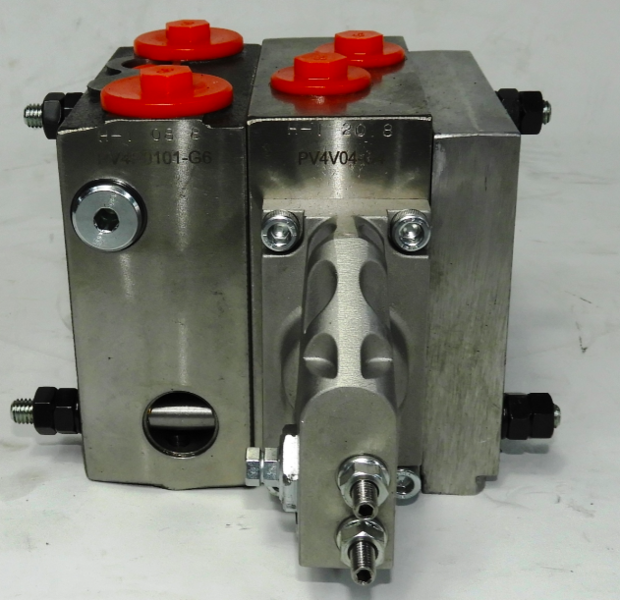

Proportional manual control valve 65 l/min ABT open

Proportional manual control valve 65 l/min ABT open

• For variable pump or a fixed flow pump (make your own choice)
• If applicable, we install a variable plug (if you choose a variable pump)
• Manual control with standard lever control valve. Including adjustment option and liter limitation
• Valves including 3-way compensator for fixed pump
• This set is delivered completely assembled and tested

Technical specifications:

• 65 liters per minute plunger ABT open in middle position
• Inlet oil temperature: -20 to 90 ̊C
• P port: 1/2" BSP
• T port: 3/4" BSP
• AB port: 1/2" BSP
• LS port: 1/4" BSP
• Standard set pressure: 250 bar
• Overpressure setting: 0-350 bar
• Max. pressure: 350 bar
• Max. pressure P port: 350 bar
• Max. pressure AB port: 350 bar
• Max. pressure T port: 40 bar
