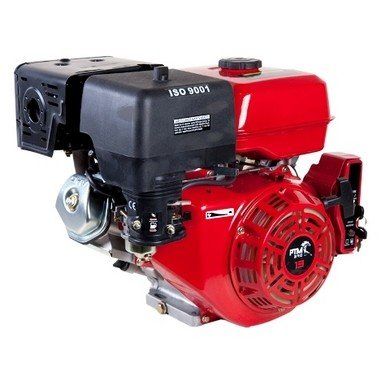

PTM390 professional 25.4mm shaft petrol engine with e-start
€565.94
In stock
PTM390 professional 25.4mm shaft petrol engine with e-start
- Reinforced crankshaft
- Reinforced connecting rod
- High Quality Cylinder Bush
- Reinforced intake and exhaust valve
- High quality valve guides
- Tighter valve springs
- Heat resistant seals (such as Viton)
- Equipped with a high quality head gasket
- Equipped with stronger ball bearings
- Equipped with normal paper air filter with pre-filter (no sponge)
- Reinforced handle mechanism
- High Quality Aluminum Castings
Technical features:
- Brand: PTM Engines
- Model: PTM390 professional
- Engine type: air-cooled OHV petrol engine
- Shaft diameter: 25.4mm
- Max power: 13 hp (9.6 kW) / 4000 rpm
- just. Torque: 25.1 Nm / 2500 rpm
- Compression ratio: 8.2:1
- Bore x Stroke: 88 x 64mm
- Displacement: 389 cm3
- Direction of rotation: counterclockwise (counterclockwise)
- Ignition: TCI
- Tank capacity: 6.0 l
- Dry weight: 31 kg
- Fuel consumption: 230 g/hp/hr
- Engine oil capacity: 1.1 l
- Dimensions(LxWxH): 450 x 405 x 443 mm
- Starting system: estart
- Noise: 70dBA
- Idle speed: 1450rpm (+/- 150rpm)
- Dimensions: see attachment
