PTO hydraulic set, 180 bar, 52 l/min at 540 RPM
PTO hydraulic set, 180 bar, 52 l/min at 540 RPM
Technical specifications:
- Flow (oil flow): 52 l/min
- Pressure: 180 bars

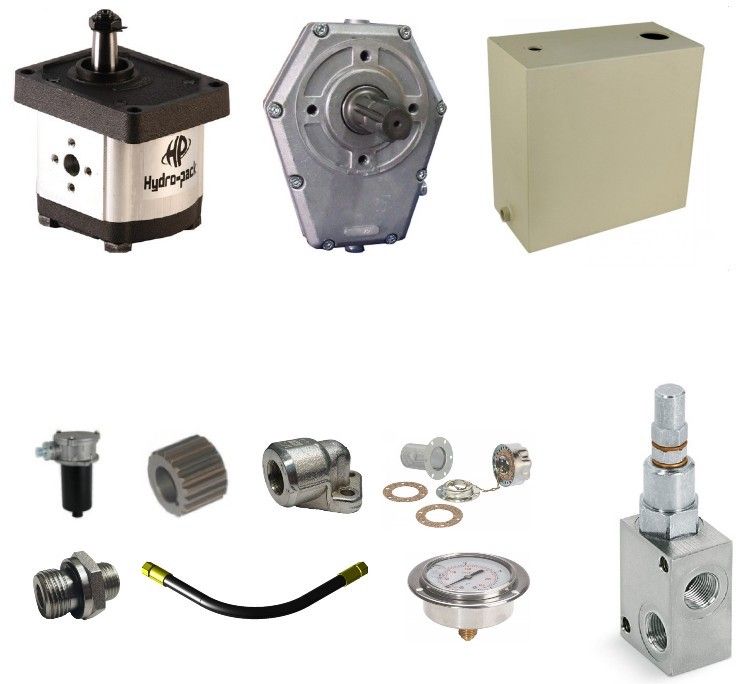

Set contents:
- 1x Gear pump group 3 right 32cc
- 1x Gearbox Gr.3 (male) 20kW
- 1x Spline bush 35x31-18; 1:8 key 4
- 1x Pump flange angled, 3 holes 1'' BSP (51mm, size 3)
- 1x Pump flange angled, 3 holes 1/2'' BSP (40mm, size 2)
- 1x Hydraulic tank return filter 3/4'' BSP, 25μ, 100 L/min
- 1x Steel hydraulic tank KVT with suction connection and return filter 50 liters
- 1x Tank filler cap type TA-F, 58 mm
- 1x Safety valve VMP 1/2"
- 1x BSP 1/2"-15L (M22x1.5) male threaded coupling with swivel
- 3x BSP 1/2"-15L (M22x1.5) male screw-in coupling
- 1x Adjustable T-adapter with o-ring 15L (M22x1.5) (L version)
- 1x BSP 3/4"-15L (M22x1.5) male screw-in coupling (for the filter)
- 1x BSP 3/4"-28L (M36x2) male screw-in coupling (for tank suction hose)
- 1x BSP 1"-28L (M36x2) male screw-in coupling (for pump suction hose)
- 1x Manometer with rear connection 63 mm, built-in, filled with glycerine, 1/4" BSP, 0-250 bar (for VMP safety valve)
- 1x Manometer coupling 1/4" BSP female thread - 12 L (M18x1.5) with gland (for pressure gauge in safety valve)
- 1x BSP 1/4"-12L (M18x1.5) male screw-in coupling (for pressure gauge in safety valve)
Select the required hydraulic hoses yourself:
To assemble this set on your vehicle, a number of hydraulic hoses are also required. Because everyone needs a different length for their application, you can click on the links below. When you click on a link, the correct hose is automatically opened in our hydraulic hose generator. Then all you have to do is enter the desired length and click on Add to Cart. Once you have selected all the hoses, they will automatically be added to the shopping cart together with your set Hydraulics24 and you can order anything.
- 1x Suction hose: click here for this hose
- 1x Return hose for overpressure to tank: click here for this hose
- 1x Pressure hose: click here for this hose
- 1x Return hose: click here for this hose
*The parts from this set are supplied separately
*The hoses required must be ordered separately (see explanation '"Select the required hydraulic hose yourself")
