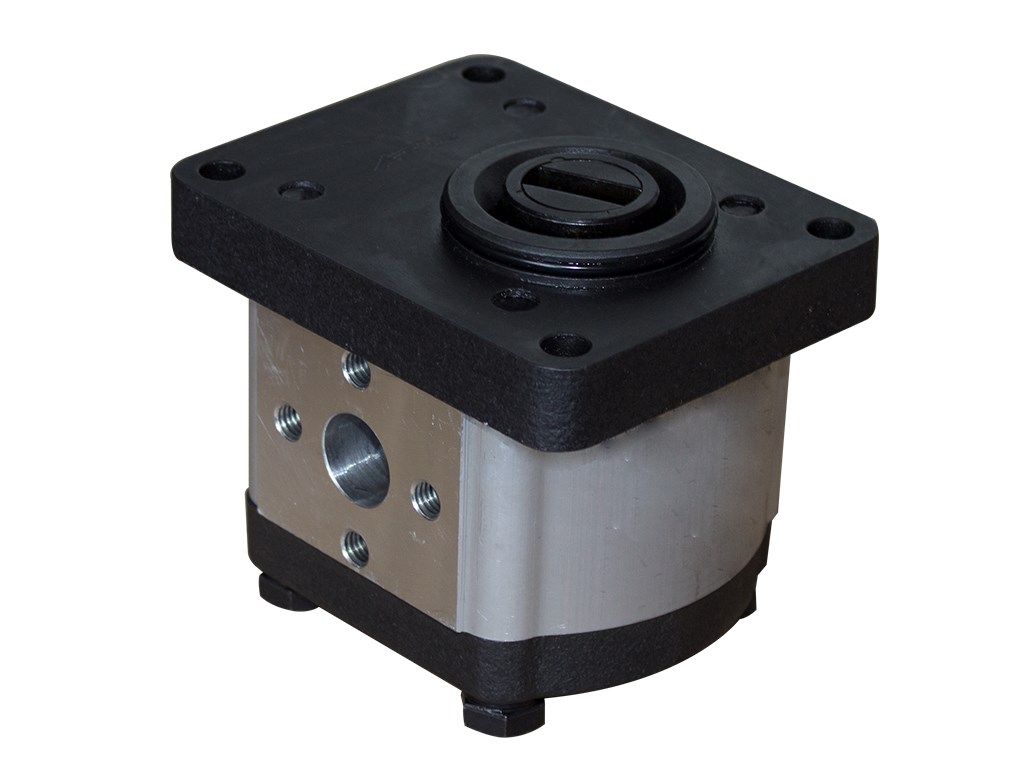

Rear pump 12 cc tandem pump left with 8 mm flat shaft - Centering Flange 50.8 mm group 30+20

Rear pump 12 cc tandem pump left with 8 mm flat shaft - Centering Flange 50.8 mm group 30+20

Rear pump for a group 2 tandem pump, together with a group 3 front pump or group 2 center pump (triple or more) and couplings can be combined to Assemble the desired tandem pump. The relevant parts can easily be assembled into a tandem pump with standard threaded rods. This part is supplied including seals and excluding bolts (concerns standard threaded rods).

Technical specifications:

• Art. no.: 20A12X201
• Direction of rotation: left
• Pump type: gear pump
• shaft: 8mm flat shaft
• Centering Flange: 50.8mm
• Cc per revolution: 12
• Flow Rate (1500 RPM): 16.92 l/min
• Flow Rate (max. RPM): 39.48 l/min
• Max. Pressure at P: 250 bar
• Max. revolutions: 3500 RPM
• Dimension A: 46.6mm
• Dimension B: 90.3mm

Inlet

• Dimension E: 39.7mm
• Dimension F: 19mm
• Dimension D: M8-6H

Outlet

• Dimension E: 30.2mm
• Dimension F: 14.2mm
• Dimension D: M6-6H
