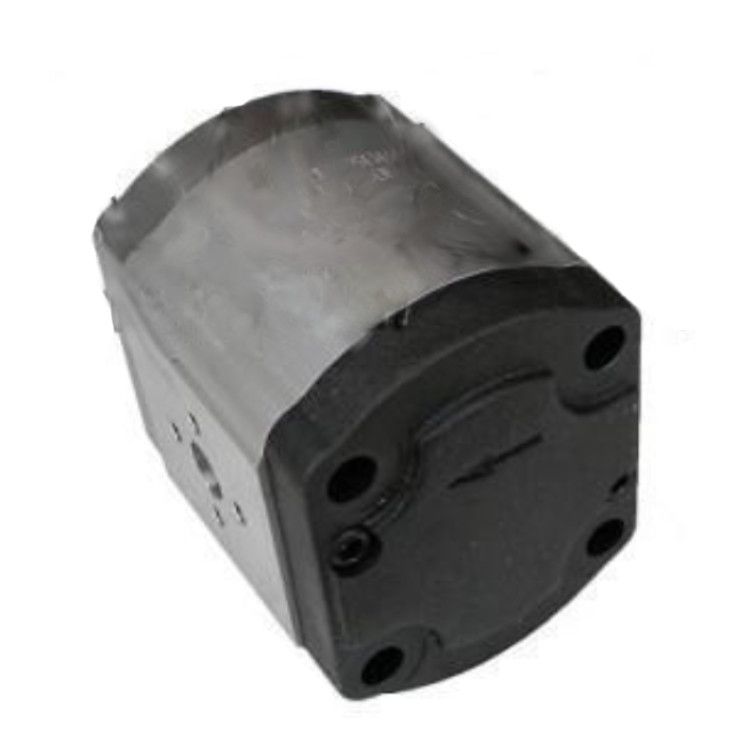

Rear pump 16 cc tandem pump left, group 20+20

Rear pump 16 cc tandem pump left, group 20+20

Rear pump for a group 2 tandem pump, together with a front pump (double pump) and/or center pump (triple or more) and couplings can be combined to Assemble the desired tandem pump. The relevant parts can easily be assembled into a tandem pump with standard threaded rods. This part is supplied including seals and excluding bolts (concerns standard threaded rods).

Technical specifications:

• Art. no.: 20A16X066
• Direction of rotation: left
• Pump type: gear pump
• shaft: 8mm flat
• Cc per revolution: 16
• Flow Rate (1500 RPM): 23.04 l/min
• Flow Rate (max. RPM): 38.40 l/min
• Max. Pressure at P: 250 bar
• Max. revolutions: 2500 RPM
• Dimension A: 50mm
• Dimension B: 96.6mm

Inlet

• Dimension E: 39.7mm
• Dimension F: 19mm
• Dimension D: M8-6H

Outlet

• Dimension E: 30.2mm
• Dimension F: 14.2mm
• Dimension D: M6-6H
