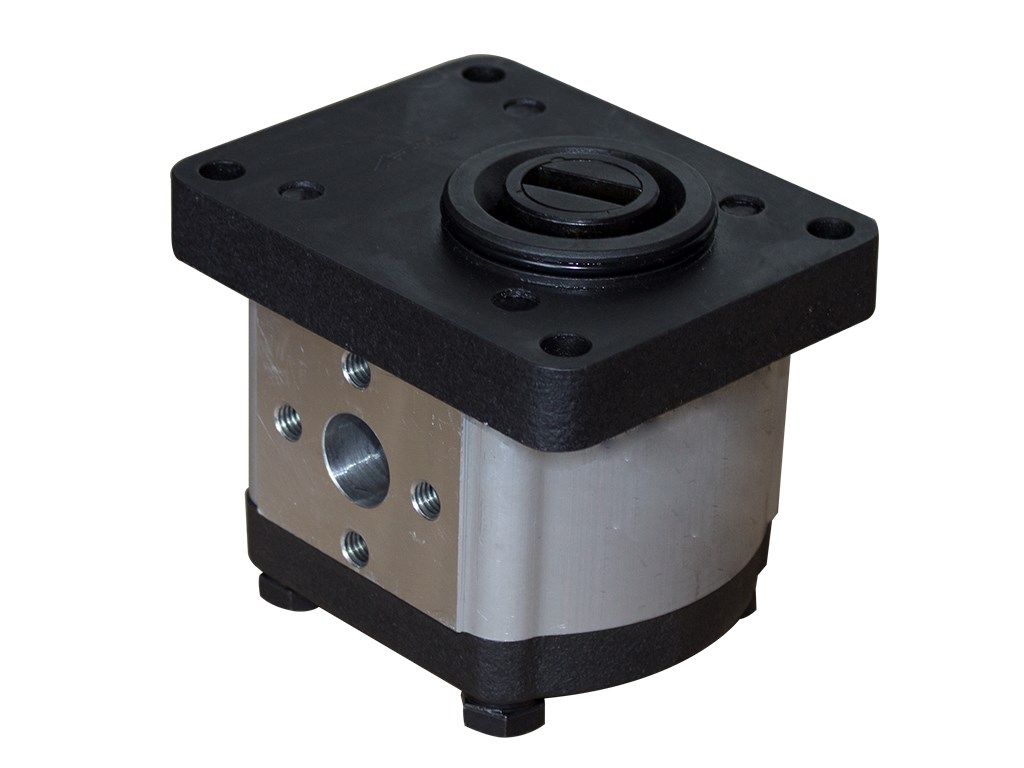

Rear pump 8.2 cc tandem pump left with 8 mm flat shaft - Centering Flange 50.8 mm group 30+20

Rear pump 8.2 cc tandem pump left with 8 mm flat shaft - Centering Flange 50.8 mm group 30+20

Rear pump for a group 2 tandem pump, together with a group 3 front pump or group 2 center pump (triple or more) and couplings can be combined to Assemble the desired tandem pump. The relevant parts can easily be assembled into a tandem pump with standard threaded rods. This part is supplied including seals and excluding bolts (concerns standard threaded rods).

Technical specifications:

• Art. no.: 20A8,2X201
• Direction of rotation: left
• Pump type: gear pump
• shaft: 8mm flat shaft
• Centering Flange: 50.8mm
• Cc per revolution: 8.2
• Flow Rate (1500 RPM): 11.32 l/min
• Flow Rate (max. RPM): 26.40 l/min
• Max. Pressure at P: 250 bar
• Max. revolutions: 3500 RPM
• Dimension A: 43.5 mm
• Dimension B: 83.9mm

• Dimension E: 30.2mm
• Dimension F: 13.1mm
• Dimension D: M6-6H

• Dimension E: 30.2mm
• Dimension F: 13.1mm
• Dimension D: M6-6H
