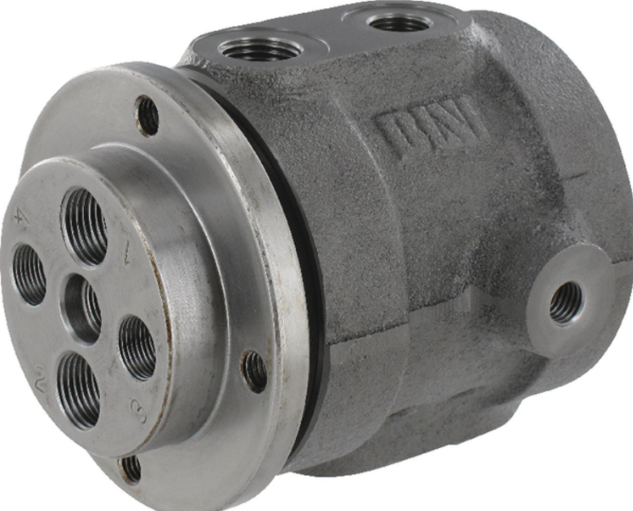

Rotary passage RC Ø60mm BSP 2x1/2" - 2x3/8"

Rotary transit RC Ø`;60mm BSP 2x1/2"`; - 2x3/8"`;

Technical specifications:

• Connection 1: `;3/8"`; BSP
• Connection 2: `;3/8"`; BSP
• Connection 3: `;1/2"`; BSP
• Connection 4: `;1/2"`; BSP
• Dimension 1 DN: `;12mm
• Dimension 2 `;DN: `;12mm
• Dimension 3 `;DN: `;10 `;mm
• Dimension 4 `;DN: `;10 `;mm
• Max. speed min-1 rpm: `;12
• Max. pressure at 12 RPM: `;420 bar
• Temperature range: `;-20°`;C to `;+90°`;c
• No axial or radial forces are permitted on rotary conduits
