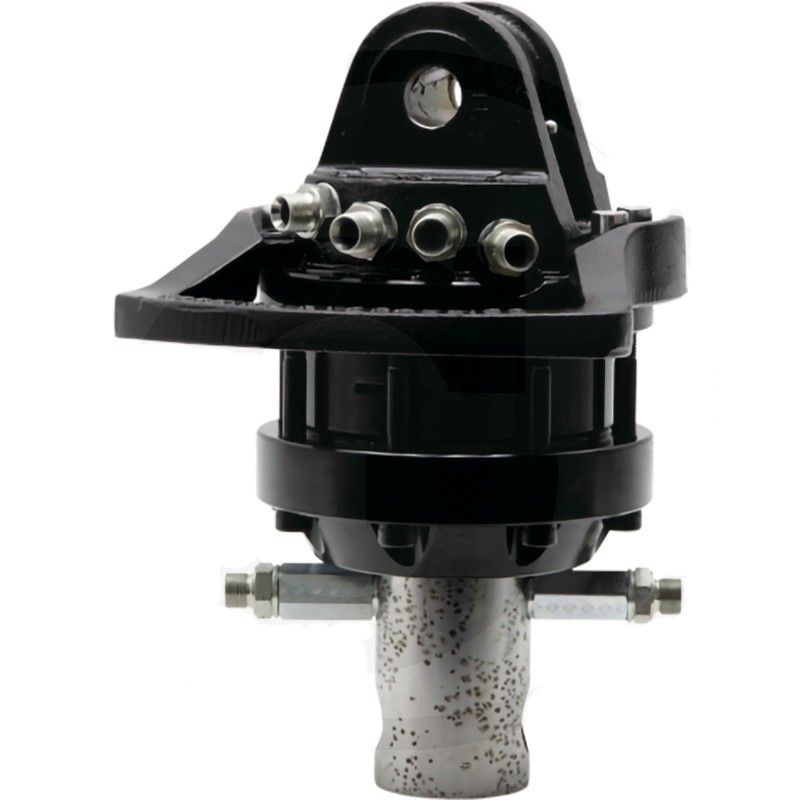

Rotator 4.5 tons with Ø68 mm shaft

Rotator 4.5 tons with &Oslshaft;68mm shaft

Technical specifications:

• Max. axial load static: 45 kN
• Max. axial load dynamic: 22.5 kN
• Torque: 1300 Nm
• Recommended oil flow: 20 l/min
• pressure: 250 bar
• Open gripper max. pressure: 200 bar
• Close gripper max. pressure: 300 bar
• Connecting wire: 3/8" BSP
• shaft-&Oslshaft;: 68mm
• Weight: 22.86kg
