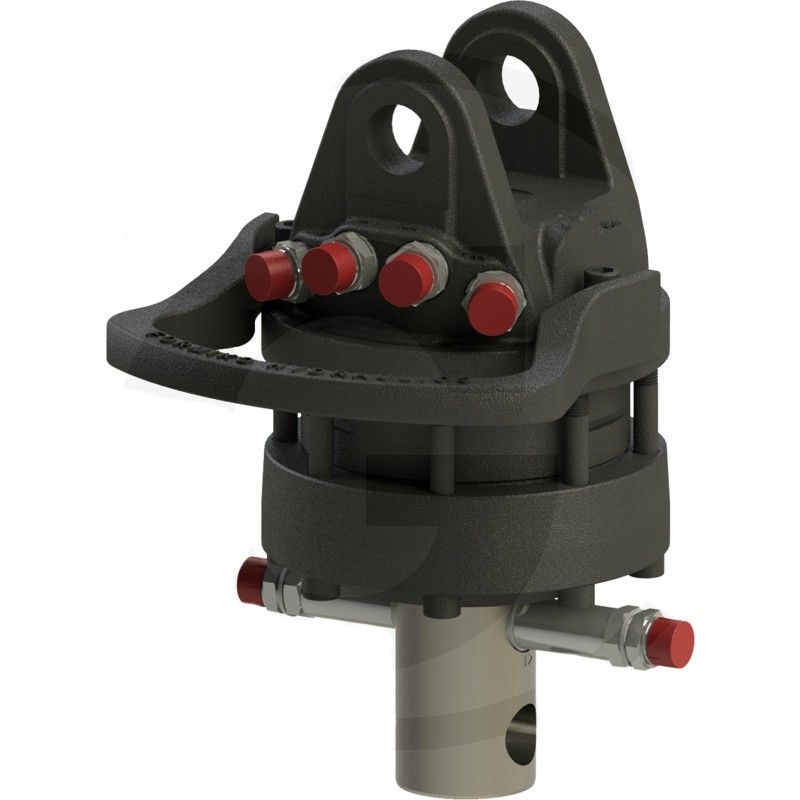

Rotator 5.5 tons with Ø69 mm shaft

Rotator 5.5 tons with &Oslshaft;69mm shaft

Technical specifications:

• Max. axial load static (kN): 55 kN
• Max. axial load dynamic (kN): 32.5 kN
• Torque: 1300 Nm
• Recommended oil flow: 20 l/min
• pressure: 250 bar
• Open gripper max. pressure: 200 bar
• Close gripper max. pressure: 300 bar
• Connecting wire: 3/8" BSP
• shaft-&Oslshaft;: 69mm
• Weight: 26 kg
