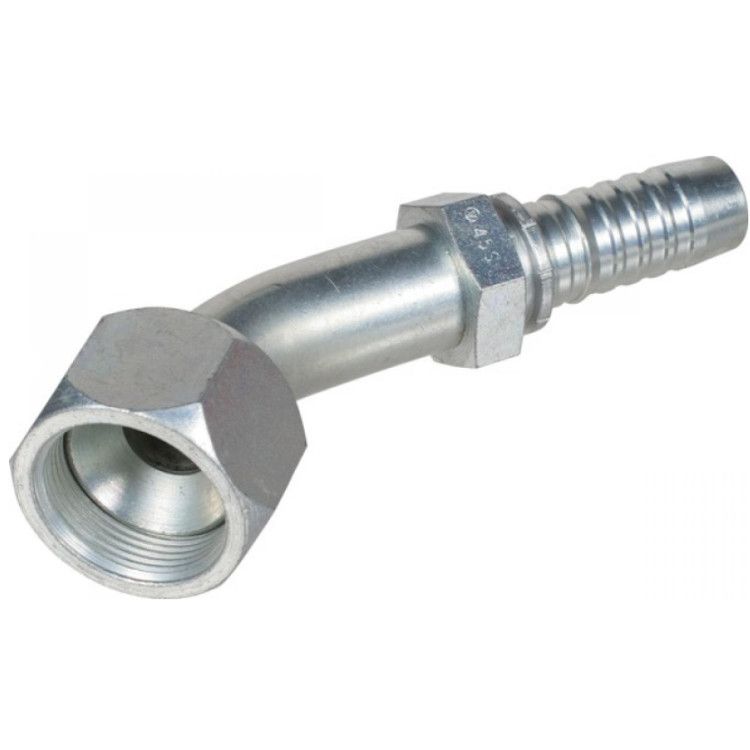

Stainless steel 1/4" DN press fitting 45º 9/16" 18h UNF

Stainless steel 1/4" DN press coupling 45º 9/16" 18h UNF

• For, among other things, connecting hydraulic hoses and pipes
• Inner cone: 37º
• Material: steel

Technical specifications:

• Dimension DN: 1/4"
• Dimension R1: 9/16" 18h UNF
• Dimension L: 74.9mm
• Dimension L1: 28 mm
• Dimension L2: 15.9mm
• Dimension HEX 1: 19 mm
• Dimension ØC: 4 mm
• Dimensions ØD: 6 mm
