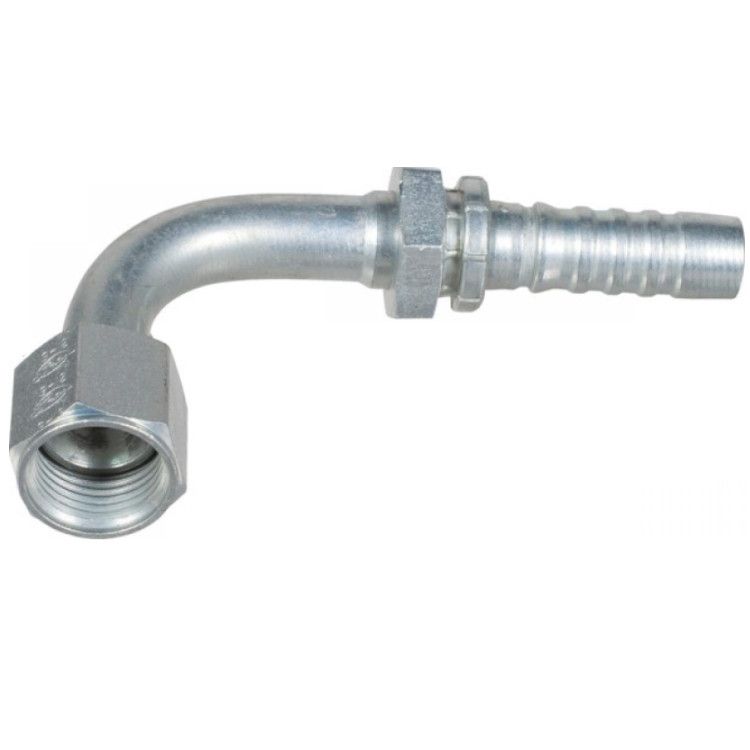

Stainless steel 1/4" DN press coupling 90º 1/2" 20h UNF

€21.61
In stock

Stainless steel 1/4" DN press coupling 90º 1/2" 20h UNF

  • For, among other things, connecting hydraulic hoses and pipes
  • Inner cone: 37º
  • Material: steel

Technical specifications:

  • Dimension DN: 1/4"
  • Dimension R1: 1/2" 20h UNF
  • Dimension L: 56 mm
  • Dimension L1: 28 mm
  • Dimension L2: 30 mm
  • Dimension HEX 1: 17 mm
  • Dimension ØC: 4 mm
  • Dimensions ØD: 4 mm
