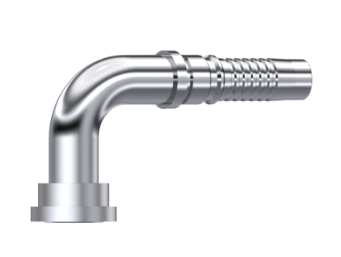

RVS 3/4" DN interlock perskoppeling 90º SAE 44,45 mm 3000 PSI

Stainless steel 3/4" DN interlock press coupling 90º SAE 44.45 mm 3000 PSI

• Material: stainless steel AISI 316-L

Technical specifications:

• Series: 3000 PSI
• Dimension DN: 3/4''
• Flange size: 44.45 mm
• Dimension L: 123 mm
• Dimension L1: 66mm
• Dimension L2: 61 mm
• Dimension ØC: 14 mm
• Dimensions ØD: 19 mm
• Dimension E: 8 mm
