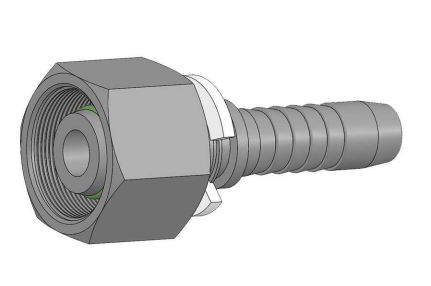

Stainless steel 3/4" DN press coupling 28L M36x2 with o-ring

Stainless steel 3/4" DN press coupling 28L M36x2 with O-ring

Technical specifications:

• Dimension DN: 3/4"
• Dimension ØD1: 28 mm
• Series: L
• Dimension R1: M36x2
• Dimension L: 71 mm
• Dimension L1: 39mm
• Dimension HEX 1: 41 mm
• Dimension ØC: 15 mm
• Dimensions Ø D: 19 mm
