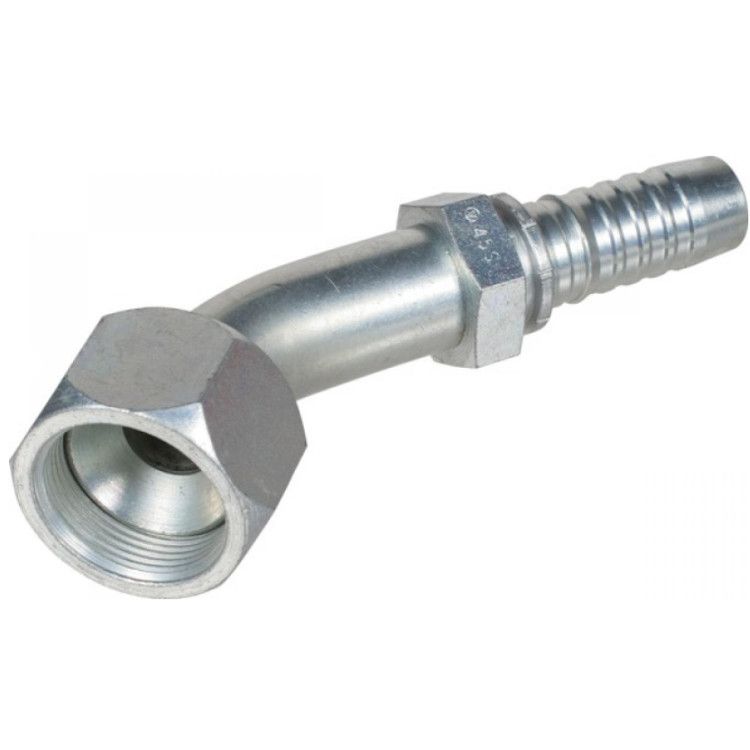

Stainless steel 3/4" DN press fitting 45º 1" 1/16 12h UNF
€43.68
In stock
Stainless steel 3/4" DN press fitting 45º 1" 1/16 12h UNF
- For connecting hydraulic hoses and pipes, among other things
- Inner cone: 37º
- Material: steel
Technical specification:
- Dimension DN: 3/4"
- Dimension R1: 1" 1/16 12h UNF
- Dimension L: 115mm
- Dimension L1: 39mm
- Dimension L2: 30mm
- Dimension HEX 1: 32mm
- Dimension C: 15mm
- Dimension ØD: 15mm
