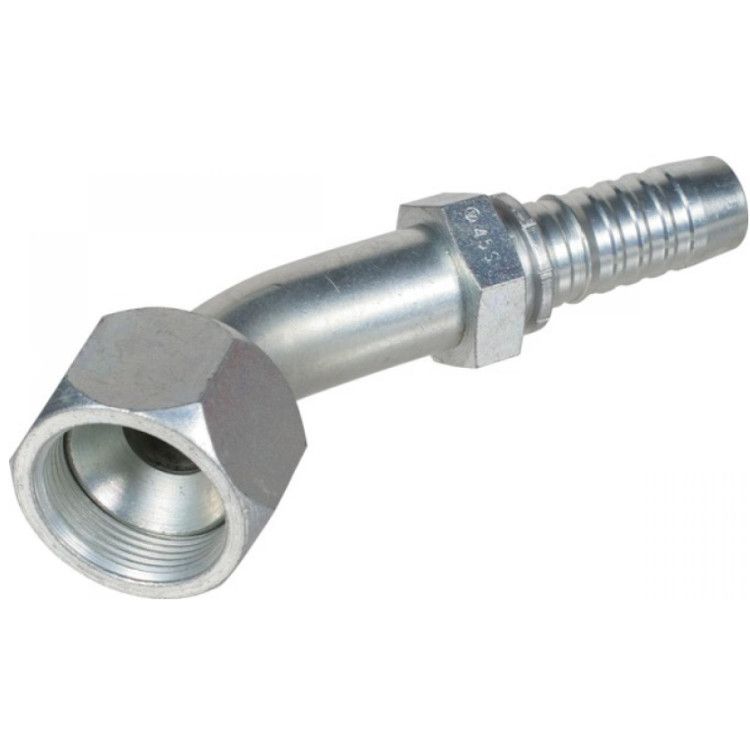

Stainless steel 3/4" DN press fitting 45º 1" 5/16 12h UNF

Stainless steel 3/4" DN press coupling 45º 1" 5/16 12h UNF

• For, among other things, connecting hydraulic hoses and pipes
• Inner cone: 37º
• Material: steel

Technical specifications:

• Dimension DN: 3/4"
• Dimension R1: 1" 5/16 12h UNF
• Dimension L: 132.7 mm
• Dimension L1: 39mm
• Dimension L2: 41.1mm
• Dimension HEX 1: 41 mm
• Dimension ØC: 15 mm
• Dimensions ØD: 22 mm
