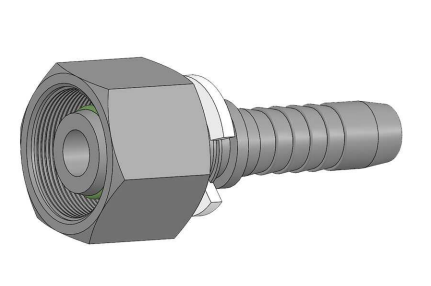

Stainless steel 3/8" DN press fitting 8L M14x1.5 with o-ring

Stainless steel 3/8" DN press coupling 8L M14x1.5 with O-ring

Technical specifications:

• Dimension DN: 3/8"
• Dimension ØD1: 8 mm
• Series: L
• Dimension R1: M14x1.5
• Dimension L: 51 mm
• Dimension L1: 29.5 mm
• Dimension HEX 1: 17 mm
• Dimension ØC: 7 mm
• Dimensions ØD: 7 mm
