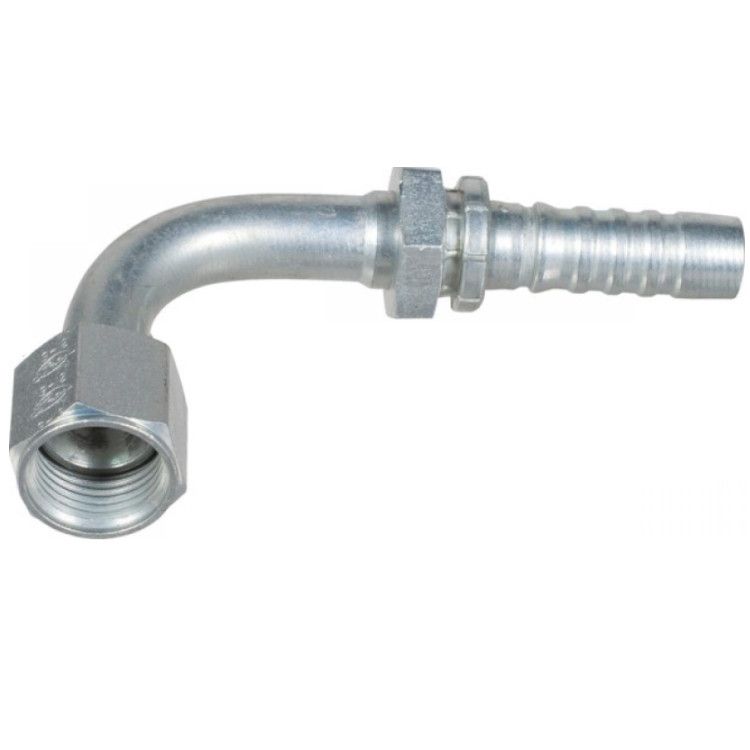

Stainless steel 3/8" DN press coupling angled 90º 9/16" 18h UNF

€22.88
In stock

Stainless steel 3/8" DN press coupling angled 90º 9/16" 18h UNF

  • For connecting hydraulic hoses and pipes, among other things
  • Inner cone: 37º
  • Material: stem

Technical specifications:

  • Dimension DN: 3/8"
  • Dimension R1: 9/16" 18h UNF
  • Dimension L: 68mm
  • Dimension L1: 29.5mm
  • Dimension L2: 38mm
  • Dimension HEX 1: 19mm
  • Dimension C: 7mm
  • Dimension ØD: 7mm
