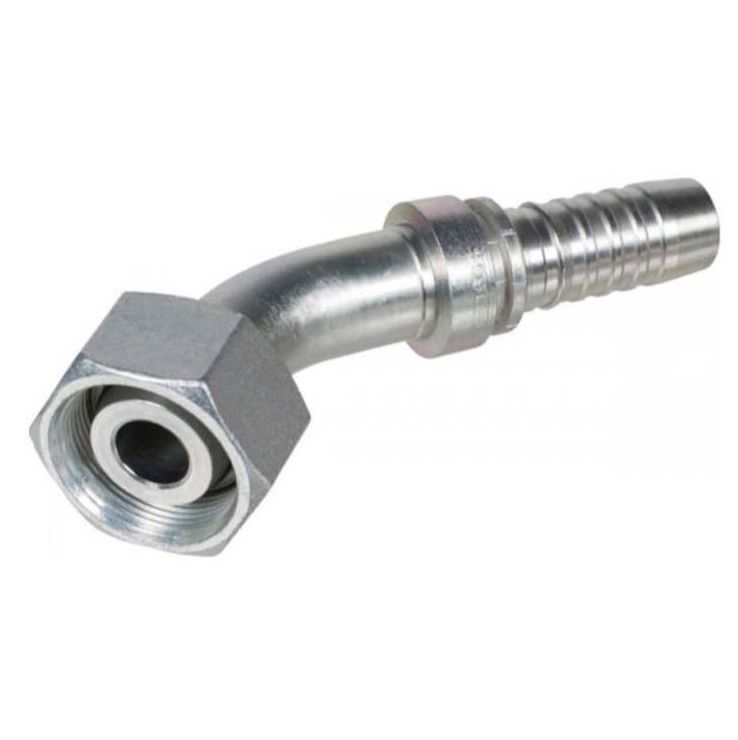

Stainless steel 5/16'' DN press fitting 45° 12S M20x1.5 with o-ring

Stainless steel 5/16'' DN press coupling 45° 12S M20x1.5 with o-ring

Technical specifications:

• Dimension DN: 5/16"
• Dimension ØD1: 12 mm
• Series: S
• Dimension R1: M20x1.5
• Dimension L1: 28 mm
• Dimension L3: 88 mm
• Dimension L4: 20 mm
• Dimension HEX 1: 24 mm
• Dimension ØC: 5.5 mm
