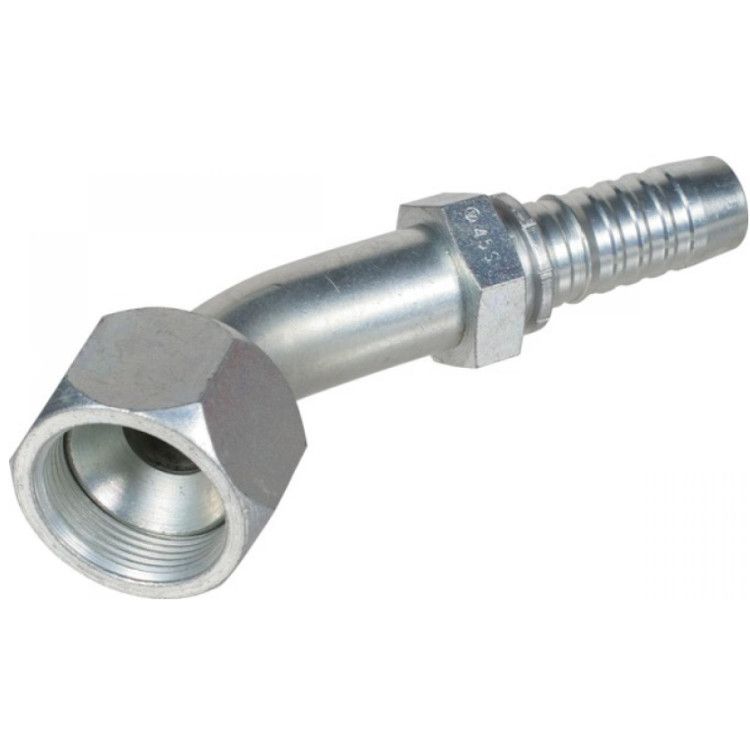

Stainless steel 5/16" DN press fitting 45º 9/16" 18h UNF

Stainless steel 5/16" DN press coupling 45º 9/16" 18h UNF

• For, among other things, connecting hydraulic hoses and pipes
• Inner cone: 37º
• Material: steel

Technical specifications:

• Dimension DN: 5/16"
• Dimension R1: 9/16" 18h UNF
• Dimension L: 83.9 mm
• Dimension L1: 28 mm
• Dimension L2: 18.9mm
• Dimension HEX 1: 19 mm
• Dimension ØC: 5.5 mm
• Dimensions ØD: 5.5 mm
