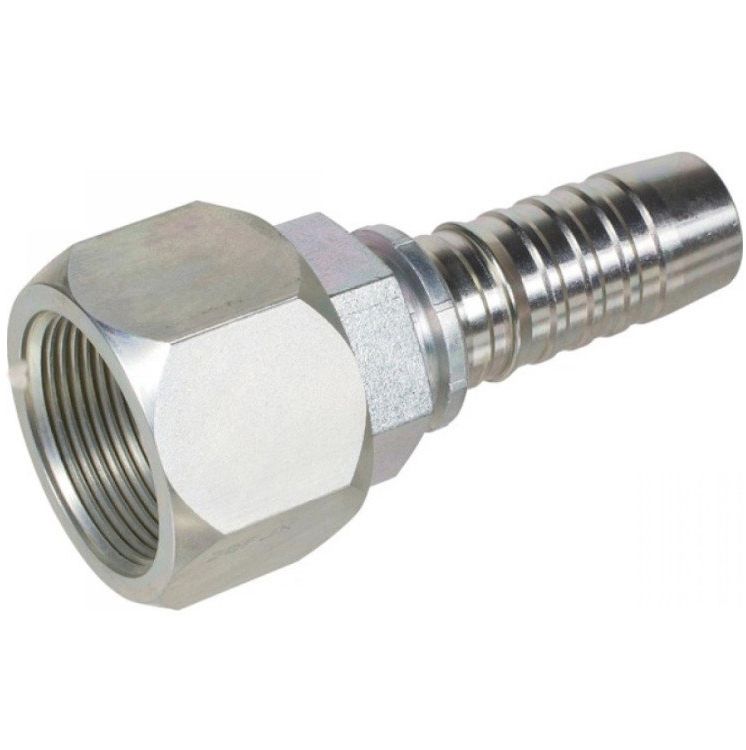

Stainless steel 5/8'' DN press fitting 1'' 1/16 12h UNF female

Stainless steel 5/8'' DN press coupling 1'' 1/16 12h UNF female

• Material: stainless steel

Technical specifications:

• Dimension DN: 5/8''
• Dimension R1: 1'' 1/16 12h UNF
• Dimension L: 56.3mm
• Dimension L1: 34 mm
• Dimension HEX 1: 32 mm
• Dimension ØC: 12 mm
• Dimensions ØD: 15 mm
