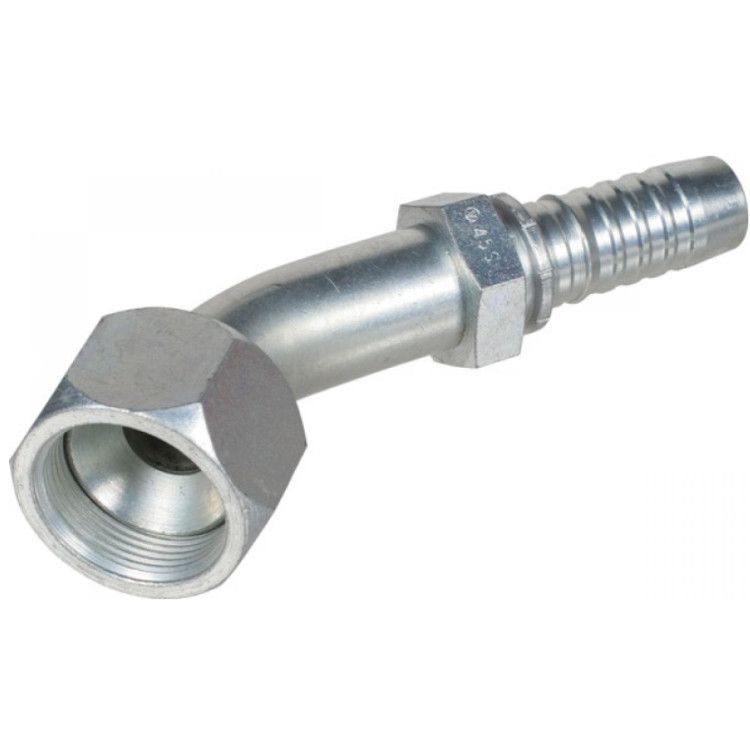

Stainless steel 5/8" DN press fitting 45º 1" 1/16 12h UNF

Stainless steel 5/8" DN press coupling 45º 1" 1/16 12h UNF

• For, among other things, connecting hydraulic hoses and pipes
• Inner cone: 37º
• Material: steel

Technical specifications:

• Dimension DN: 5/8"
• Dimension R1: 1" 1/16 12h UNF
• Dimension L: 97 mm
• Dimension L1: 34 mm
• Dimension L2: 25 mm
• Dimension HEX 1: 32 mm
• Dimension ØC: 12 mm
• Dimensions ØD: 15 mm
