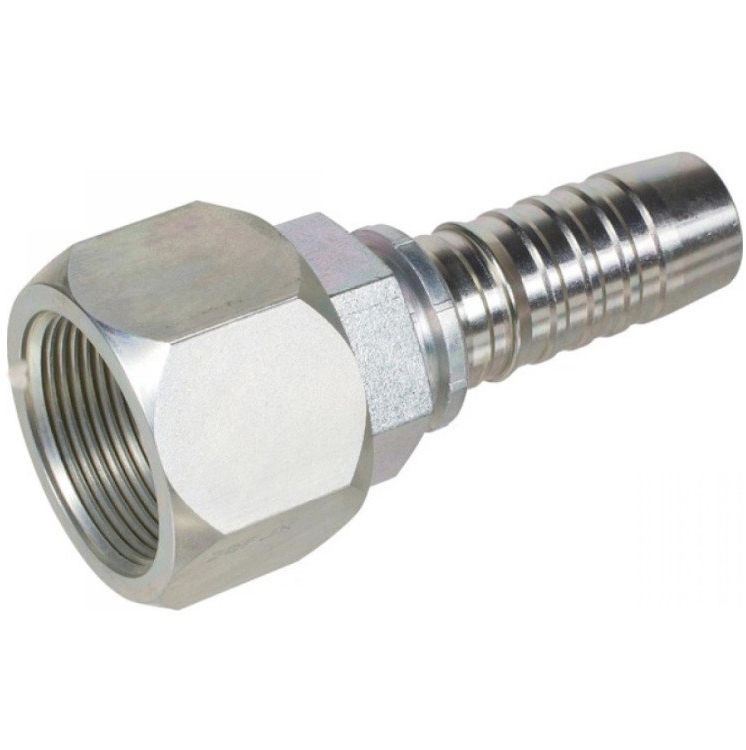

Stainless steel 5/8'' DN press fitting 7/8'' 14h UNF female

Stainless steel 5/8'' DN press coupling 7/8'' 14h UNF female

• Material: stainless steel

Technical specifications:

• Dimension DN: 5/8''
• Dimension R1: 7/8'' 14h UNF
• Dimension L: 54.6mm
• Dimension L1: 34 mm
• Dimension HEX 1: 27 mm
• Dimension ØC: 12 mm
• Dimensions ØD: 12 mm
